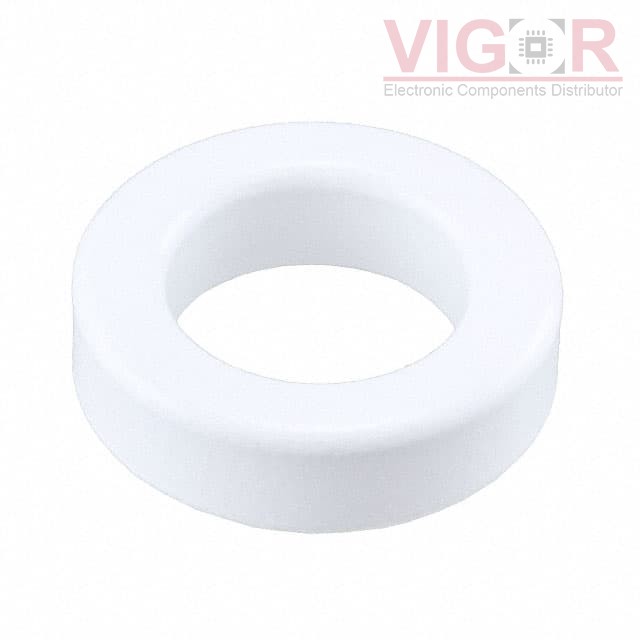

TX22/14/6.4-3E27-M7

Part No :: TX22/14/6.4-3E27-M7

Manufacturer: FERROXCUBE

Description: FERRITE CORES ROUND

Catalog: Ferrite Cores

DataSheet: TX22/14/6.4-3E27-M7 PDF

Availability: 745 pieces

Current price of TX22/14/6.4-3E27-M7 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

TX22/14/6.4-3E27-M7 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Core Type:	Toroid
Supplier Device Package:	TX 22 x 14 x 6.4
Material:	3E27
Diameter:	22.35mm
Inductance Factor (Al):	-
Tolerance:	±20%
Gap:	Ungapped
Effective Permeability (µe):	-
Initial Permeability (µi):	5300
Core Factor (ΣI/A) mm^-1:	2.2
Effective Length (le) mm:	54.2
Effective Area (Ae) mm²:	24.8
Minimum Core Cross Section (Amin) mm²:	-
Effective Magnetic Volume (Ve) mm³:	1340
Finish:	Epoxy
Height:	6.75mm
Length:	-
Width:	-
