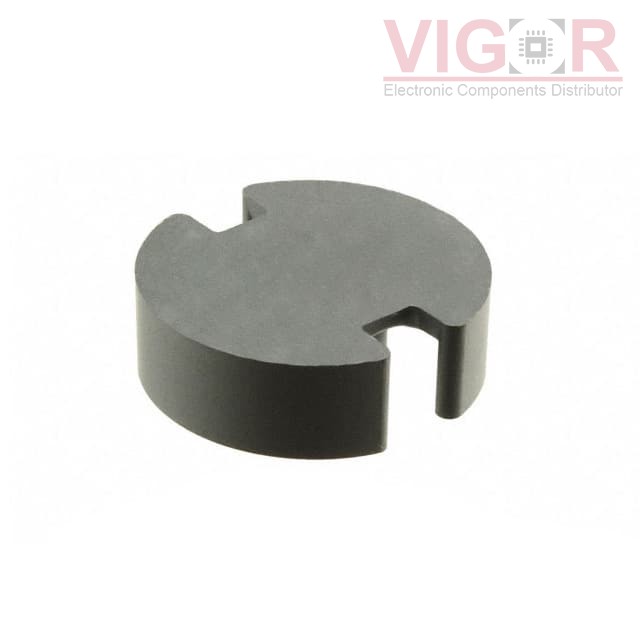

B65661W0000Y038

Part No :: B65661W0000Y038

Manufacturer: TDK EPCOS

VIGOR # :: 4179503

Description: FERRITE CORE P 16UH T38 2PCS

Catalog: Ferrite Cores

DataSheet: B65661W0000Y038 PDF

Country of origin: -

Date code: -

B65661W0000Y038 Specifications

Type	Description
Series:	B65661
Package:	Box
Part Status:	Active
Core Type:	P (Pot Core)
Supplier Device Package:	P 22 x 13
Material:	T38
Diameter:	22.00mm
Inductance Factor (Al):	16 µH
Tolerance:	-30%, +40%
Gap:	Ungapped
Effective Permeability (µe):	5820
Initial Permeability (µi):	10000
Core Factor (ΣI/A) mm^-1:	0.46
Effective Length (le) mm:	33.2
Effective Area (Ae) mm²:	72.6
Minimum Core Cross Section (Amin) mm²:	58.1
Effective Magnetic Volume (Ve) mm³:	2410
Finish:	Uncoated
Height:	6.80mm
Length:	-
Width:	-

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 1195

Shipped from

HK warehouse

Expected Shipping Date

Jan 30 - Feb 03 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$4.04~~	~~$4.04~~
10	~~$3.47~~	~~$34.65~~
25	~~$2.60~~	~~$64.97~~
50	~~$2.53~~	~~$126.34~~
100	~~$2.24~~	~~$223.80~~
250	~~$2.09~~	~~$523.40~~
500	~~$1.95~~	~~$974.60~~
1000	~~$1.80~~	~~$1 804.83~~

Current price of B65661W0000Y038 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
