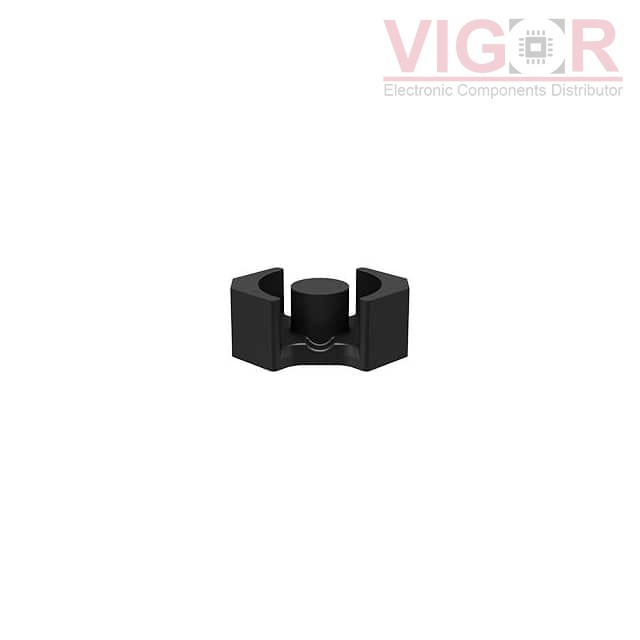

B65819J0160J041

Part No :: B65819J0160J041

Manufacturer: TDK EPCOS

VIGOR # :: 4179529

Description: FERRITE CORE RM 160NH N41 2PCS

Catalog: Ferrite Cores

DataSheet: B65819J0160J041 PDF

Country of origin: -

Date code: -

B65819J0160J041 Specifications

Type	Description
Series:	B65819
Package:	Box
Part Status:	Active
Core Type:	RM
Supplier Device Package:	RM 7
Material:	N41
Diameter:	-
Inductance Factor (Al):	160 nH
Tolerance:	±5%
Gap:	Gapped
Effective Permeability (µe):	90
Initial Permeability (µi):	2800
Core Factor (ΣI/A) mm^-1:	0.7
Effective Length (le) mm:	30.4
Effective Area (Ae) mm²:	43
Minimum Core Cross Section (Amin) mm²:	39
Effective Magnetic Volume (Ve) mm³:	1310
Finish:	Uncoated
Height:	6.75mm
Length:	20.30mm
Width:	-

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Nov 04 - Nov 08 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$1.3780~~	~~$1.38~~
750	~~$1.3780~~	~~$1 033.46~~

Current price of B65819J0160J041 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
