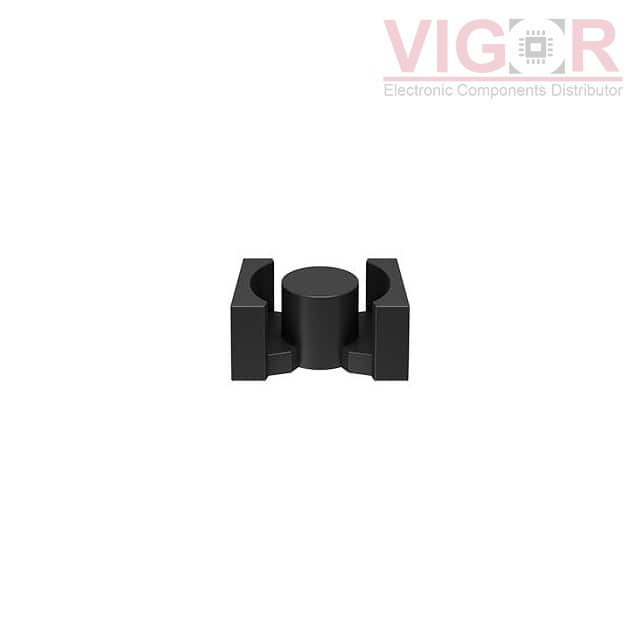

B65981B0000R087

Part No :: B65981B0000R087

Manufacturer: TDK EPCOS

Description: PQ50/40 N87 UNGAPPED

Catalog: Ferrite Cores

DataSheet: B65981B0000R087 PDF

Availability: 0 pieces

Current price of B65981B0000R087 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

B65981B0000R087 Specifications

Type	Description
Series:	B65981
Package:	Box
Part Status:	Active
Core Type:	PQ
Supplier Device Package:	PQ 50 x 40
Material:	N87
Diameter:	-
Inductance Factor (Al):	7.6 µH
Tolerance:	-20%, +30%
Gap:	Ungapped
Effective Permeability (µe):	1710
Initial Permeability (µi):	-
Core Factor (ΣI/A) mm^-1:	0.28
Effective Length (le) mm:	93
Effective Area (Ae) mm²:	334
Minimum Core Cross Section (Amin) mm²:	314
Effective Magnetic Volume (Ve) mm³:	31250
Finish:	Uncoated
Height:	0.787" (20.00mm)
Length:	1.969" (50.00mm)
Width:	1.260" (32.00mm)
