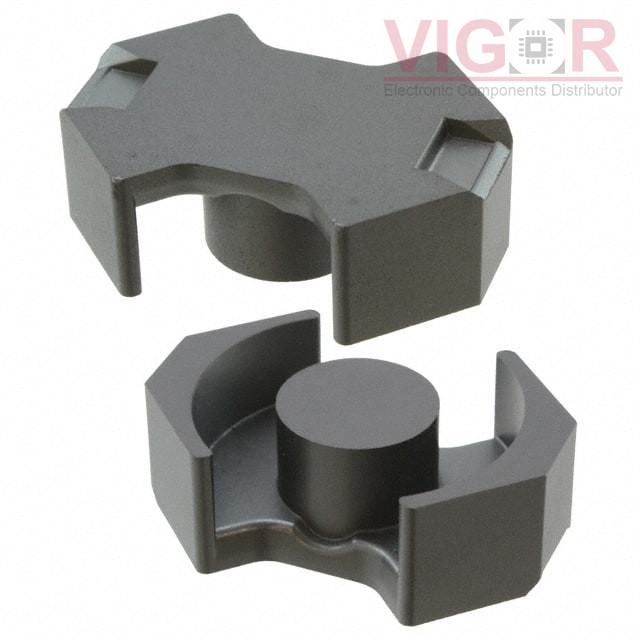

B65813J0000R041

Part No :: B65813J0000R041

Manufacturer: TDK EPCOS

Description: FERRITE CORE RM 5.5UH N41 2PCS

Catalog: Ferrite Cores

DataSheet: B65813J0000R041 PDF

Availability: 83 pieces

Current price of B65813J0000R041 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

B65813J0000R041 Specifications

Type	Description
Series:	B65813
Package:	Box
Part Status:	Active
Core Type:	RM
Supplier Device Package:	RM 10
Material:	N41
Diameter:	-
Inductance Factor (Al):	5.5 µH
Tolerance:	-20%, +30%
Gap:	Ungapped
Effective Permeability (µe):	1960
Initial Permeability (µi):	2800
Core Factor (ΣI/A) mm^-1:	0.45
Effective Length (le) mm:	44
Effective Area (Ae) mm²:	98
Minimum Core Cross Section (Amin) mm²:	90
Effective Magnetic Volume (Ve) mm³:	4310
Finish:	Uncoated
Height:	9.35mm
Length:	28.50mm
Width:	13.50mm
