PC47EI60-Z

Part No :: PC47EI60-Z

Manufacturer: TDK Corporation

VIGOR # :: 4179728

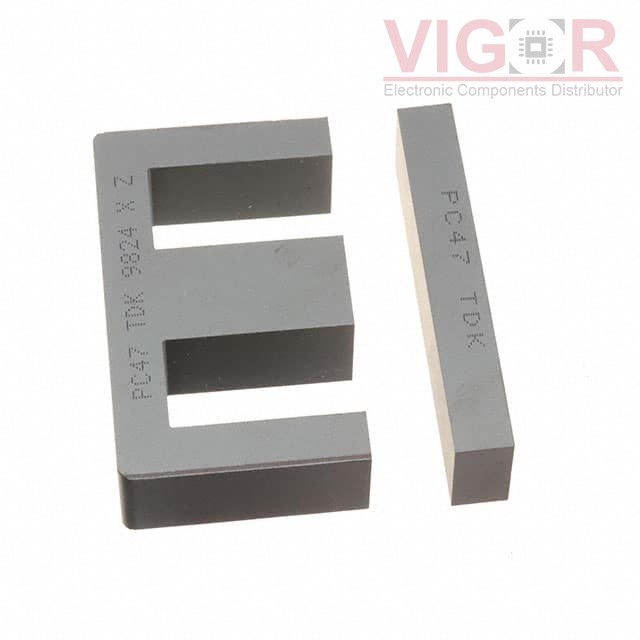

Description: EI CORE SMPS TRANSFORMER 1 SET

Catalog: Ferrite Cores

DataSheet: PC47EI60-Z PDF

Country of origin: -

Date code: -

PC47EI60-Z Specifications

Type	Description
Series:	E
Package:	Tray
Part Status:	Active
Core Type:	E
Supplier Device Package:	-
Material:	PC47
Diameter:	-
Inductance Factor (Al):	5.67 µH
Tolerance:	±25%
Gap:	Ungapped
Effective Permeability (µe):	-
Initial Permeability (µi):	2500
Core Factor (ΣI/A) mm^-1:	0.441
Effective Length (le) mm:	109
Effective Area (Ae) mm²:	247
Minimum Core Cross Section (Amin) mm²:	-
Effective Magnetic Volume (Ve) mm³:	26900
Finish:	Uncoated
Height:	-
Length:	2.362" (60.00mm)
Width:	0.614" (15.60mm)
