PC95EI22/8/16-Z

Part No :: PC95EI22/8/16-Z

Manufacturer: TDK Corporation

VIGOR # :: 4179758

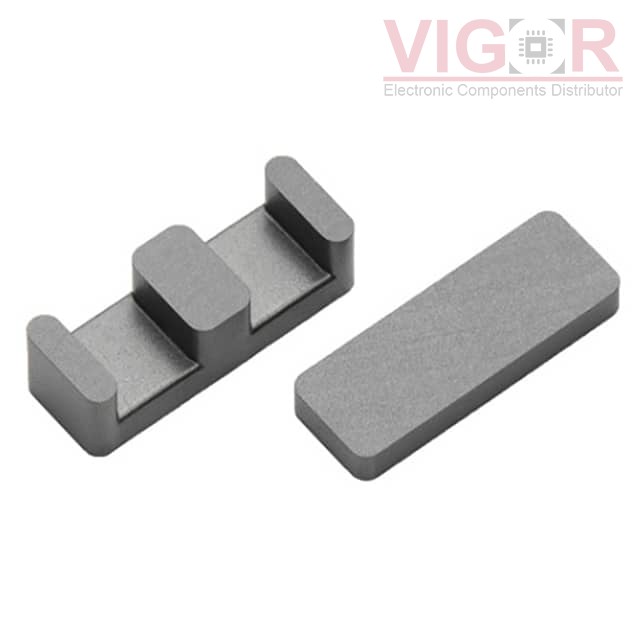

Description: FERRITE CORE EI 8.01UH 1SET

Catalog: Ferrite Cores

DataSheet: PC95EI22/8/16-Z PDF

Country of origin: Confirming

Date code: TBC

PC95EI22/8/16-Z Specifications

Type	Description
Series:	Planar
Package:	Tray
Part Status:	Active
Core Type:	HE, PLT
Supplier Device Package:	EI 22 x 8 x 16
Material:	PC95
Diameter:	-
Inductance Factor (Al):	8.01 µH
Tolerance:	±25%
Gap:	Ungapped
Effective Permeability (µe):	-
Initial Permeability (µi):	-
Core Factor (ΣI/A) mm^-1:	0.33
Effective Length (le) mm:	79
Effective Area (Ae) mm²:	26.1
Minimum Core Cross Section (Amin) mm²:	79
Effective Magnetic Volume (Ve) mm³:	2060
Finish:	Uncoated
Height:	8.00mm
Length:	21.80mm
Width:	15.80mm
