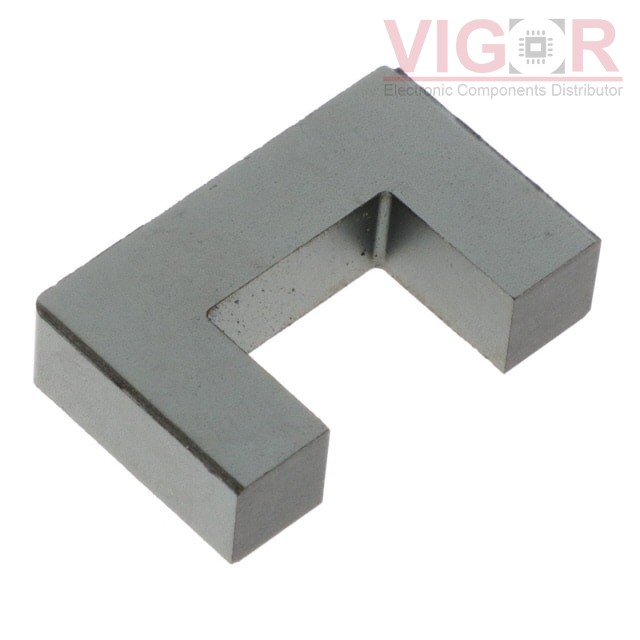

9077025002

Part No :: 9077025002

Manufacturer: Fair-Rite Products Corp.

Description: 77 U CORE

Catalog: Ferrite Cores

DataSheet: 9077025002 PDF

Availability: 1445 pieces

Current price of 9077025002 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

9077025002 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Core Type:	U
Supplier Device Package:	-
Material:	77
Diameter:	-
Inductance Factor (Al):	-
Tolerance:	-
Gap:	Ungapped
Effective Permeability (µe):	-
Initial Permeability (µi):	2000
Core Factor (ΣI/A) mm^-1:	207
Effective Length (le) mm:	84
Effective Area (Ae) mm²:	40
Minimum Core Cross Section (Amin) mm²:	-
Effective Magnetic Volume (Ve) mm³:	3360
Finish:	Uncoated
Height:	-
Length:	25.40mm
Width:	6.35mm

Please confirm the specifications of the products when ordering.
