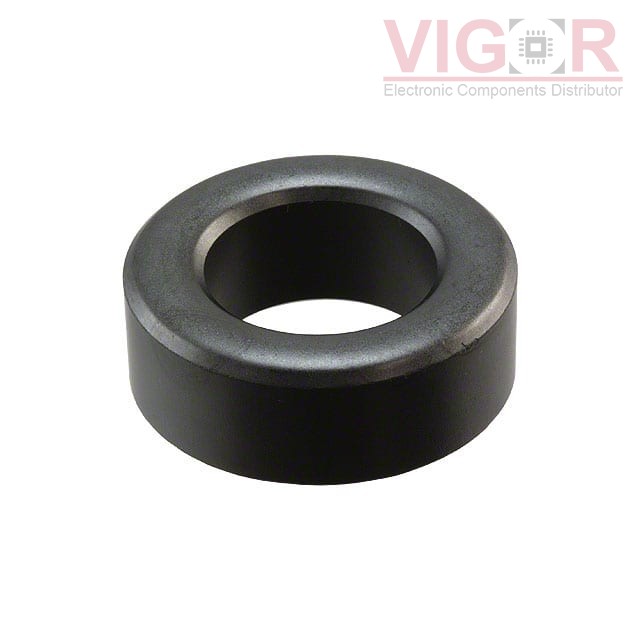

B64290A0044X087

Part No :: B64290A0044X087

Manufacturer: TDK EPCOS

Description: FERRITE CORE TOROID 11.2UH N87

Catalog: Ferrite Cores

DataSheet: B64290A0044X087 PDF

Availability: 0 pieces

Current price of B64290A0044X087 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

B64290A0044X087 Specifications

Type	Description
Series:	B64290
Package:	Box
Part Status:	Active
Core Type:	Toroid
Supplier Device Package:	R 12.5 x 7.5 x 5
Material:	N87
Diameter:	12.50mm
Inductance Factor (Al):	1.12 µH
Tolerance:	±25%
Gap:	Ungapped
Effective Permeability (µe):	-
Initial Permeability (µi):	2200
Core Factor (ΣI/A) mm^-1:	2.46
Effective Length (le) mm:	30.09
Effective Area (Ae) mm²:	12.23
Minimum Core Cross Section (Amin) mm²:	-
Effective Magnetic Volume (Ve) mm³:	368
Finish:	Uncoated
Height:	5.00mm
Length:	-
Width:	-
