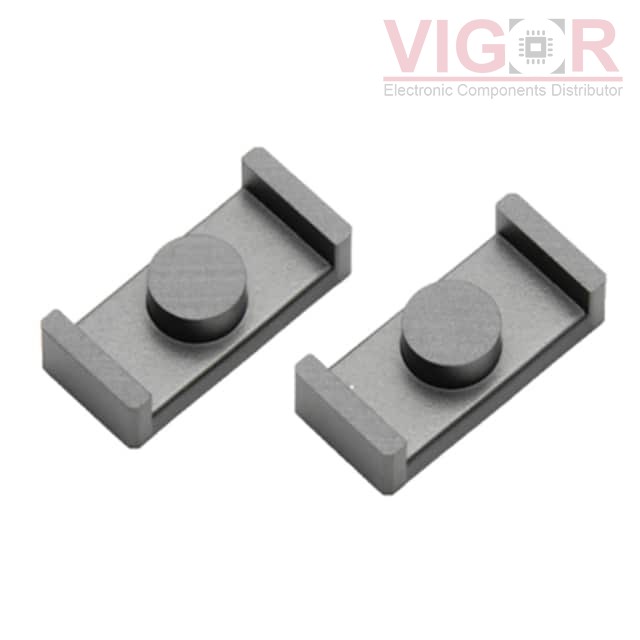

PC95ER11/5-Z

Part No :: PC95ER11/5-Z

Manufacturer: TDK Corporation

Description: FERRITE CORE ER 1.68UH 2PC SET

Catalog: Ferrite Cores

DataSheet: PC95ER11/5-Z PDF

Availability: 0 pieces

Current price of PC95ER11/5-Z is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

PC95ER11/5-Z Specifications

Type	Description
Series:	Planar
Package:	Tray
Part Status:	Active
Core Type:	ER
Supplier Device Package:	ER 11 x 5
Material:	PC95
Diameter:	-
Inductance Factor (Al):	1.68 µH
Tolerance:	±25%
Gap:	Ungapped
Effective Permeability (µe):	-
Initial Permeability (µi):	-
Core Factor (ΣI/A) mm^-1:	1.23
Effective Length (le) mm:	11.9
Effective Area (Ae) mm²:	14.7
Minimum Core Cross Section (Amin) mm²:	10.3
Effective Magnetic Volume (Ve) mm³:	174
Finish:	Uncoated
Height:	2.50mm
Length:	11.00mm
Width:	6.00mm
