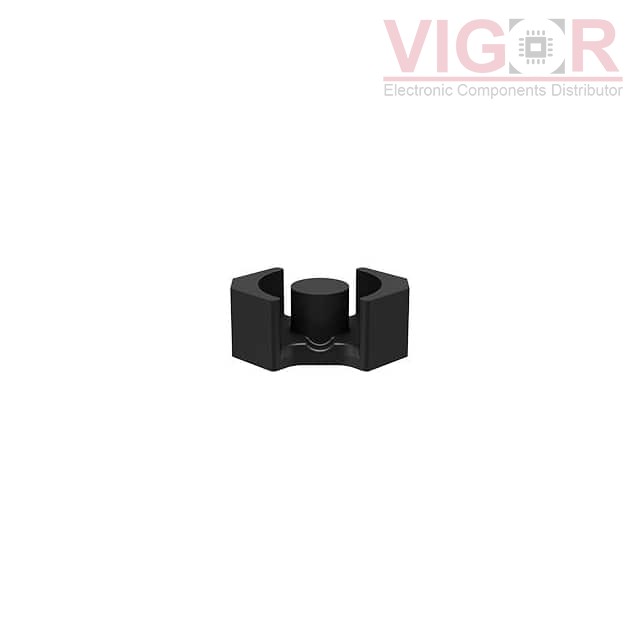

B65811J0630J041

Part No :: B65811J0630J041

Manufacturer: TDK EPCOS

Description: FERRITE CORE RM 630NH N41 2PCS

Catalog: Ferrite Cores

DataSheet: B65811J0630J041 PDF

Availability: 0 pieces

Current price of B65811J0630J041 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

B65811J0630J041 Specifications

Type	Description
Series:	B65811
Package:	Box
Part Status:	Active
Core Type:	RM
Supplier Device Package:	RM 8
Material:	N41
Diameter:	-
Inductance Factor (Al):	630 nH
Tolerance:	±5%
Gap:	Gapped
Effective Permeability (µe):	298
Initial Permeability (µi):	2800
Core Factor (ΣI/A) mm^-1:	0.59
Effective Length (le) mm:	38
Effective Area (Ae) mm²:	64
Minimum Core Cross Section (Amin) mm²:	55
Effective Magnetic Volume (Ve) mm³:	2430
Finish:	Uncoated
Height:	8.25mm
Length:	23.20mm
Width:	11.00mm
