B65857A0000Y066

Part No :: B65857A0000Y066

Manufacturer: TDK EPCOS

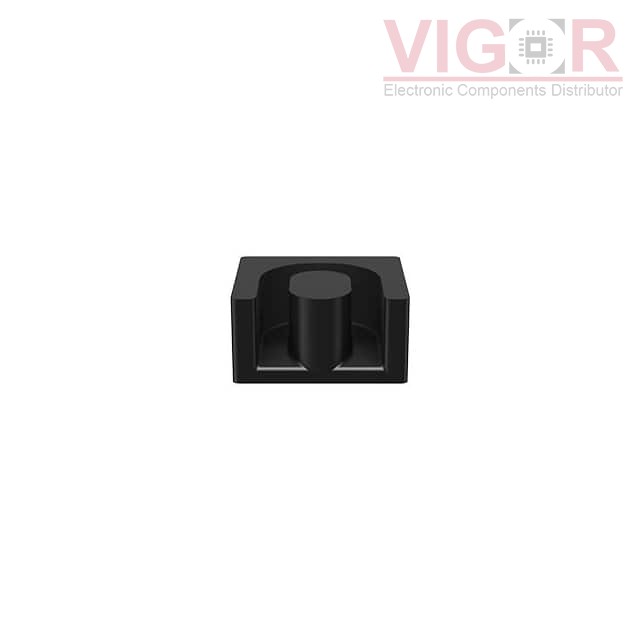

Description: FERRITE CORE EPX 10.5UH T66 2PCS

Catalog: Ferrite Cores

DataSheet: B65857A0000Y066 PDF

Availability: 0 pieces

Current price of B65857A0000Y066 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

B65857A0000Y066 Specifications

Type	Description
Series:	B65857A
Package:	Box
Part Status:	Obsolete
Core Type:	EPX
Supplier Device Package:	EPX 7 x 9
Material:	T66
Diameter:	-
Inductance Factor (Al):	10.5 µH
Tolerance:	-30%, +40%
Gap:	Ungapped
Effective Permeability (µe):	7630
Initial Permeability (µi):	13000
Core Factor (ΣI/A) mm^-1:	0.91
Effective Length (le) mm:	15.7
Effective Area (Ae) mm²:	17.2
Minimum Core Cross Section (Amin) mm²:	13.9
Effective Magnetic Volume (Ve) mm³:	270
Finish:	Uncoated
Height:	3.75mm
Length:	9.40mm
Width:	9.00mm

Please confirm the specifications of the products when ordering.
