SH1424-5241

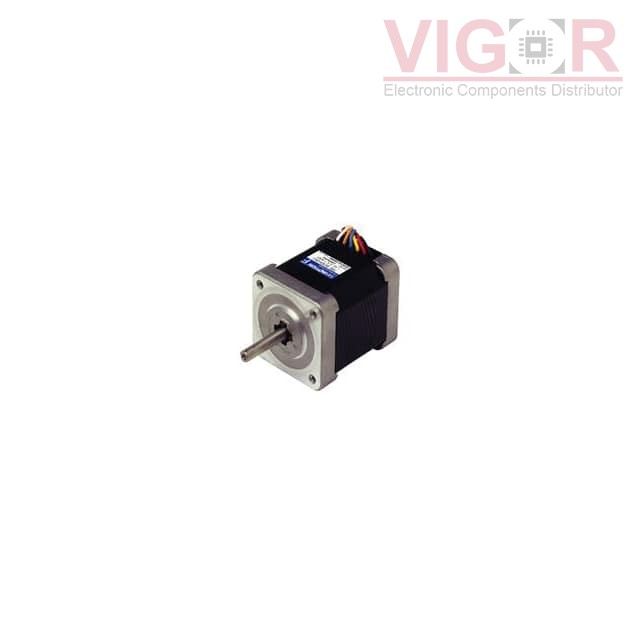

Image is for reference,
please contact us to get the real picture

Part No :: SH1424-5241

Manufacturer: Sanyo Denki SanMotion Products

Description: STEP, F2, SQ.42, 0.9, , , BIPOLA

Catalog: Stepper Motors

DataSheet: SH1424-5241 PDF

Availability: 0 pieces

Unit Price: ~~$44.22000~~

Current price of SH1424-5241 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SH1424-5241 Specifications

Type	Description
Series:	SH
Package:	Box
Part Status:	Active
Type:	Hybrid
Coil Type:	Bipolar
Voltage - Rated:	24VDC
Current Rating (Amps):	2 A
Steps per Revolution:	400
Step Angle:	0.9°
Accuracy:	-
Torque - Holding (oz-in / mNm):	67.97 / 480
Size / Dimension:	Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size:	-
Diameter - Shaft:	0.197" (5.00mm)
Length - Shaft and Bearing:	0.945" (24.00mm)
Mounting Hole Spacing:	1.220" (31.00mm)
Termination Style:	Wire Leads
Operating Temperature:	-10°C ~ 50°C
Coil Resistance:	1.25 Ohms
Features:	-

Please confirm the specifications of the products when ordering.
