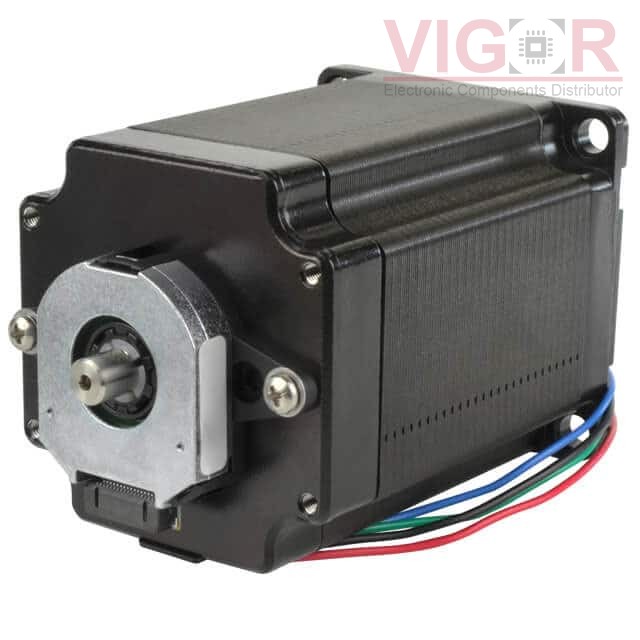

NEMA23-22-02SD-AMT112S

Image is for reference,
please contact us to get the real picture

Part No :: NEMA23-22-02SD-AMT112S

Manufacturer: CUI Devices

Description: STEPPER MOTOR W/ INCREMENTAL ENC

Catalog: Stepper Motors

DataSheet: NEMA23-22-02SD-AMT112S PDF

Availability: 16 pieces

Unit Price: ~~$129.35000~~

Current price of NEMA23-22-02SD-AMT112S is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

NEMA23-22-02SD-AMT112S Specifications

Type	Description
Series:	NEMA23-AMT112S
Package:	Box
Part Status:	Active
Type:	-
Coil Type:	Bipolar
Voltage - Rated:	24 ~ 80VDC
Current Rating (Amps):	2.1 A
Steps per Revolution:	200
Step Angle:	1.8°
Accuracy:	±0.2%
Torque - Holding (oz-in / mNm):	170 / 1200.46
Size / Dimension:	Square - 2.252" x 2.252" (57.20mm x 57.20mm)
NEMA Frame Size:	23
Diameter - Shaft:	0.250" (6.35mm)
Length - Shaft and Bearing:	0.811" (20.60mm)
Mounting Hole Spacing:	1.819" (46.20mm)
Termination Style:	Connector
Operating Temperature:	-20°C ~ 50°C
Coil Resistance:	1.8 Ohms
Features:	Integrated Encoder, Flatted Shaft
