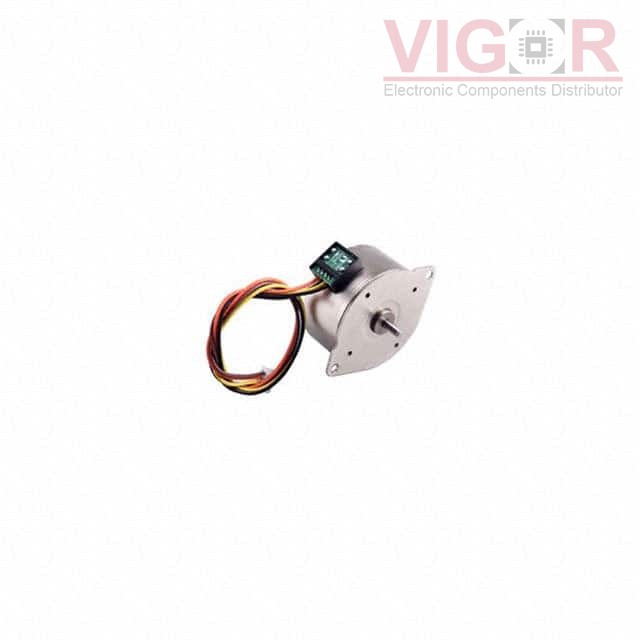

PM35S-075-015

Image is for reference,
please contact us to get the real picture

Part No :: PM35S-075-015

Manufacturer: Lin Engineering

Description: PERMANENT MAGNET STEPPER MOTOR

Catalog: Stepper Motors

DataSheet: PM35S-075-015 PDF

Availability: 10 pieces

Unit Price: ~~$24.42000~~

Current price of PM35S-075-015 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

PM35S-075-015 Specifications

Type	Description
Series:	-
Package:	Tray
Part Status:	Active
Type:	-
Coil Type:	Bipolar
Voltage - Rated:	24VDC
Current Rating (Amps):	0.15 A
Steps per Revolution:	48
Step Angle:	7.5°
Accuracy:	-
Torque - Holding (oz-in / mNm):	6.4 / 45.2
Size / Dimension:	Round - 1.650" Dia (42.00mm)
NEMA Frame Size:	-
Diameter - Shaft:	0.118" (3.00mm)
Length - Shaft and Bearing:	0.394" (10.00mm)
Mounting Hole Spacing:	1.650" (42.00mm)
Termination Style:	Wire Leads with Connector
Operating Temperature:	-20°C ~ 50°C
Coil Resistance:	80 Ohms
Features:	-

Please confirm the specifications of the products when ordering.
