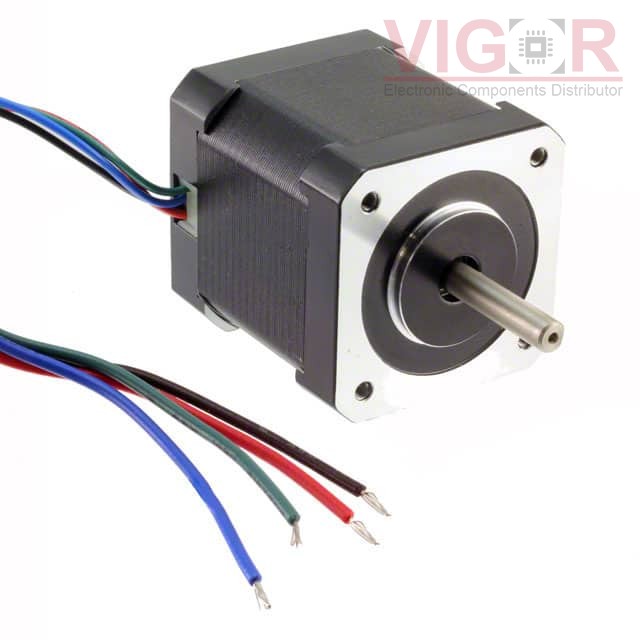

QSH4218-47-28-040

Image is for reference,
please contact us to get the real picture

Part No :: QSH4218-47-28-040

Manufacturer: TRINAMIC Motion Control GmbH

Description: STEP MOTOR HYBRID BIPOLAR 1.4V

Catalog: Stepper Motors

DataSheet: QSH4218-47-28-040 PDF

Availability: 2 pieces

Unit Price: ~~$55.83000~~

Current price of QSH4218-47-28-040 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

QSH4218-47-28-040 Specifications

Type	Description
Series:	QMot QSH4218
Package:	Bulk
Part Status:	Active
Type:	Hybrid
Coil Type:	Bipolar
Voltage - Rated:	1.4VDC
Current Rating (Amps):	2.81 A
Steps per Revolution:	200
Step Angle:	1.8°
Accuracy:	±5%
Torque - Holding (oz-in / mNm):	56.3 / 400
Size / Dimension:	Square - 1.665" x 1.665" (42.30mm x 42.30mm)
NEMA Frame Size:	17
Diameter - Shaft:	0.197" (5.00mm)
Length - Shaft and Bearing:	0.945" (24.00mm)
Mounting Hole Spacing:	1.220" (30.99mm)
Termination Style:	Wire Leads
Operating Temperature:	-20°C ~ 50°C
Coil Resistance:	1.5 Ohms
Features:	Flatted Shaft
