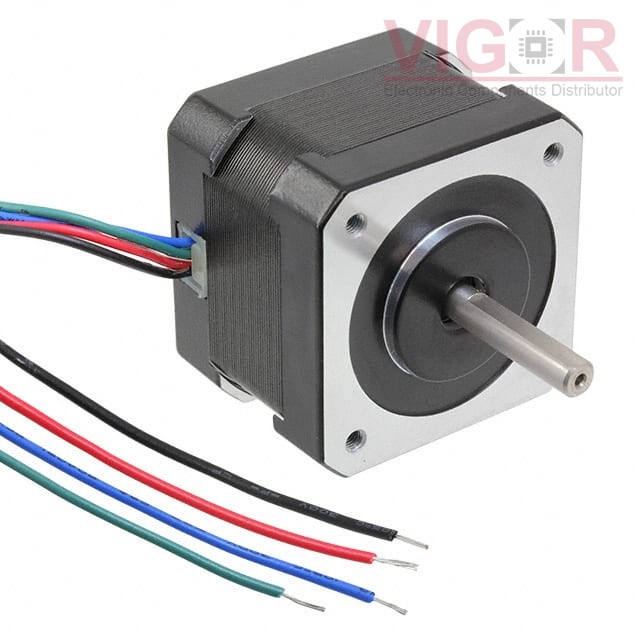

QSH4218-35-10-027

Image is for reference,
please contact us to get the real picture

Part No :: QSH4218-35-10-027

Manufacturer: TRINAMIC Motion Control GmbH

Description: STEP MOTOR HYBRID BIPOLAR 5.3V

Catalog: Stepper Motors

DataSheet: QSH4218-35-10-027 PDF

Availability: 133 pieces

Unit Price: ~~$38.81000~~

Current price of QSH4218-35-10-027 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

QSH4218-35-10-027 Specifications

Type	Description
Series:	QMot QSH4218
Package:	Bulk
Part Status:	Active
Type:	Hybrid
Coil Type:	Bipolar
Voltage - Rated:	5.3VDC
Current Rating (Amps):	1 A
Steps per Revolution:	200
Step Angle:	1.8°
Accuracy:	±5%
Torque - Holding (oz-in / mNm):	38.2 / 270
Size / Dimension:	Square - 1.665" x 1.665" (42.30mm x 42.30mm)
NEMA Frame Size:	17
Diameter - Shaft:	0.197" (5.00mm)
Length - Shaft and Bearing:	0.945" (24.00mm)
Mounting Hole Spacing:	1.220" (30.99mm)
Termination Style:	Wire Leads
Operating Temperature:	-20°C ~ 50°C
Coil Resistance:	5.3 Ohms
Features:	Flatted Shaft
