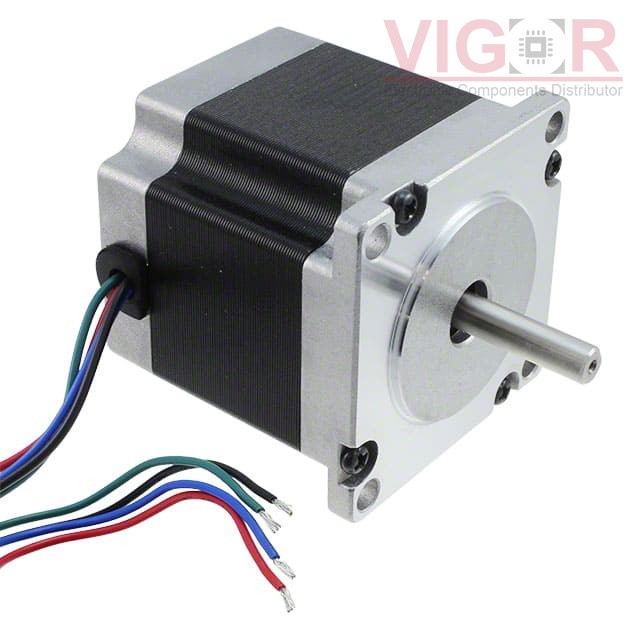

QSH5718-56-28-126

Image is for reference,
please contact us to get the real picture

Part No :: QSH5718-56-28-126

Manufacturer: TRINAMIC Motion Control GmbH

Description: STEP MOTOR HYBRID BIPOLAR 2.5V

Catalog: Stepper Motors

DataSheet: QSH5718-56-28-126 PDF

Availability: 80 pieces

Unit Price: ~~$60.64000~~

Current price of QSH5718-56-28-126 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

QSH5718-56-28-126 Specifications

Type	Description
Series:	QMot QSH5718
Package:	Bulk
Part Status:	Active
Type:	Hybrid
Coil Type:	Bipolar
Voltage - Rated:	2.5VDC
Current Rating (Amps):	2.8 A
Steps per Revolution:	200
Step Angle:	1.8°
Accuracy:	±5%
Torque - Holding (oz-in / mNm):	178.43 / 1260
Size / Dimension:	Square - 2.220" x 2.220" (56.40mm x 56.40mm)
NEMA Frame Size:	23
Diameter - Shaft:	0.250" (6.35mm)
Length - Shaft and Bearing:	0.945" (24.00mm)
Mounting Hole Spacing:	1.856" (47.14mm)
Termination Style:	Wire Leads
Operating Temperature:	-20°C ~ 50°C
Coil Resistance:	0.9 Ohms
Features:	Flatted Shaft
