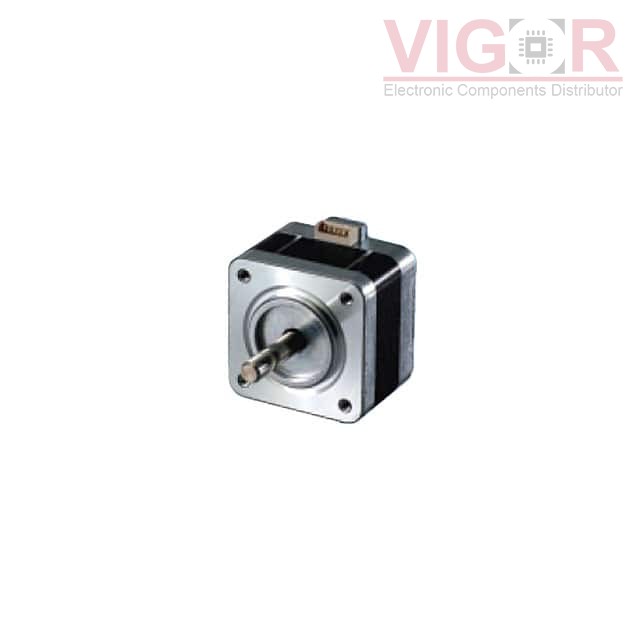

14PM-M047U

Part No :: 14PM-M047U

Manufacturer: NMB Technologies Corp.

VIGOR # :: 4554287

Description: STEP MOTOR HYBRID UNIPOLAR 24V

Catalog: Stepper Motors

DataSheet: 14PM-M047U PDF

Country of origin: -

Date code: -

14PM-M047U Specifications

Type	Description
Series:	14PM
Package:	Bulk
Part Status:	Obsolete
Type:	Hybrid
Coil Type:	Unipolar
Voltage - Rated:	24VDC
Current Rating (Amps):	800 mA
Steps per Revolution:	200
Step Angle:	1.8°
Accuracy:	-
Torque - Holding (oz-in / mNm):	4.82 / 34
Size / Dimension:	Square - 1.378" x 1.378" (35.00mm x 35.00mm)
NEMA Frame Size:	14
Diameter - Shaft:	0.197" (5.00mm)
Length - Shaft and Bearing:	0.787" (20.00mm)
Mounting Hole Spacing:	1.023" (26.00mm)
Termination Style:	Wire Leads with Connector
Operating Temperature:	-
Coil Resistance:	2.4 Ohms
Features:	Round Shaft
