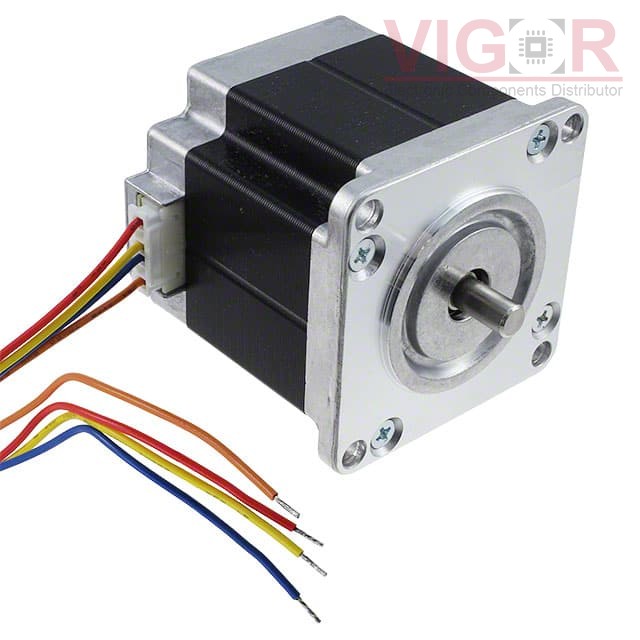

23KM-K041BT03CA

Part No :: 23KM-K041BT03CA

Manufacturer: NMB Technologies Corp.

VIGOR # :: 4554293

Description: STEPPER MOTOR HYBRID BIPOLAR 36V

Catalog: Stepper Motors

DataSheet: 23KM-K041BT03CA PDF

Country of origin: -

Date code: -

23KM-K041BT03CA Specifications

Type	Description
Series:	23KM
Package:	Box
Part Status:	Obsolete
Type:	Hybrid
Coil Type:	Bipolar
Voltage - Rated:	36VDC
Current Rating (Amps):	-
Steps per Revolution:	200
Step Angle:	1.8°
Accuracy:	±5%
Torque - Holding (oz-in / mNm):	169.53 / 1197
Size / Dimension:	Square - 2.220" x 2.220" (56.40mm x 56.40mm)
NEMA Frame Size:	23
Diameter - Shaft:	0.236" (6.00mm)
Length - Shaft and Bearing:	0.453" (11.50mm)
Mounting Hole Spacing:	1.856" (47.14mm)
Termination Style:	Wire Leads
Operating Temperature:	-
Coil Resistance:	1 Ohms
Features:	Flatted Shaft
