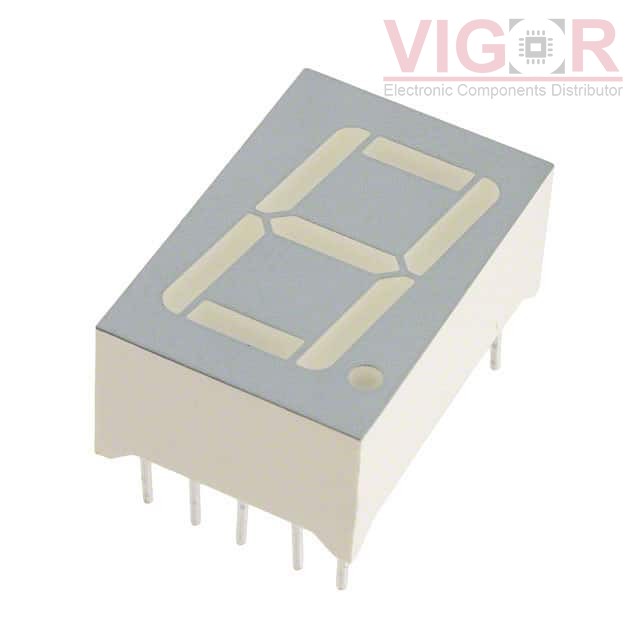

SA56-11YWA

Part No :: SA56-11YWA

Manufacturer: Kingbright

VIGOR # :: 1662712

Description: DISPLAY 7SEG 0.56" SGL YLW 10DIP

Catalog: Display Modules - LED Character and Numeric

DataSheet: SA56-11YWA PDF

Country of origin: -

Date code: -

SA56-11YWA Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Display Format:	-
Number of Characters:	1
Size / Dimension:	0.750" H x 0.500" W x 0.315" D (19.05mm x 12.70mm x 8.00mm)
Digit/Alpha Size:	0.56" (14.22mm)
Display Type:	7-Segment
Common Pin:	Common Anode
Color:	Yellow
Voltage - Forward (Vf) (Typ):	2.1V
Current - Test:	20mA
Millicandela Rating:	6.5mcd
Wavelength - Peak:	590nm
Power Dissipation (Max):	75mW
Package / Case:	10-DIP (0.600", 15.24mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 50

Shipped from

HK warehouse

Expected Shipping Date

Mar 29 - Apr 02 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$1.9600~~	~~$1.96~~
10	~~$1.5925~~	~~$15.92~~
40	~~$1.2250~~	~~$49.00~~
120	~~$1.1025~~	~~$132.30~~
280	~~$0.9800~~	~~$274.40~~
520	~~$0.8330~~	~~$433.16~~
1000	~~$0.6860~~	~~$686.00~~
2520	~~$0.6517~~	~~$1 642.28~~
5000	~~$0.6370~~	~~$3 185.00~~

Current price of SA56-11YWA is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
