MAN74A

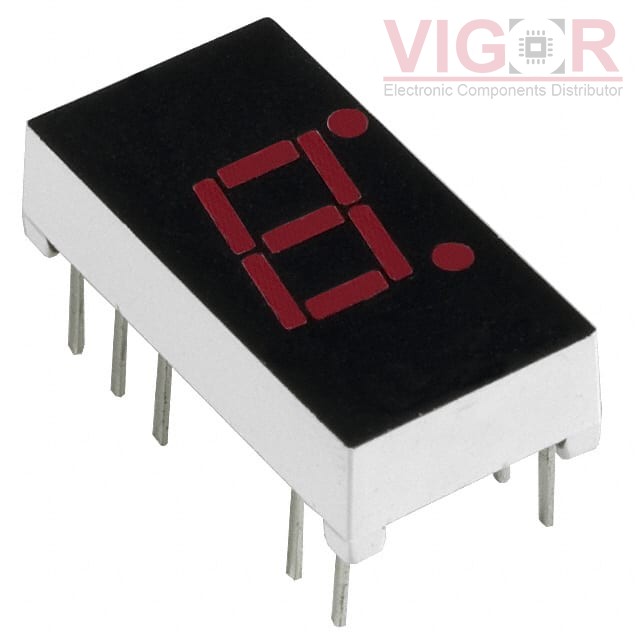

Image is for reference,
please contact us to get the real picture

Part No :: MAN74A

Manufacturer: Sanyo Semiconductor/ON Semiconductor

Description: DISPLAY 7-SEG 0.3" SGL RED 14DIP

Catalog: Display Modules - LED Character and Numeric

DataSheet: MAN74A PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of MAN74A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

MAN74A Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Obsolete
Display Format:	-
Number of Characters:	1
Size / Dimension:	0.738" H x 0.386" W x 0.200" D (18.75mm x 9.80mm x 5.08mm)
Digit/Alpha Size:	0.30" (7.62mm)
Display Type:	7-Segment
Common Pin:	Common Cathode
Color:	Red
Voltage - Forward (Vf) (Typ):	2.2V
Current - Test:	20mA
Millicandela Rating:	0.35mcd
Wavelength - Peak:	660nm
Power Dissipation (Max):	480mW
Package / Case:	14-DIP (0.300", 7.62mm), 10 Leads
