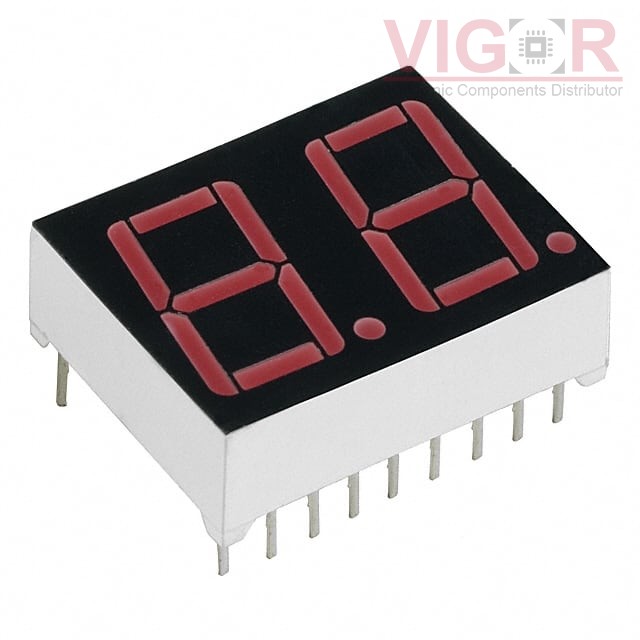

MAN6740

Part No :: MAN6740

Manufacturer: Sanyo Semiconductor/ON Semiconductor

VIGOR # :: 4453580

Description: LED 7-SEG DUAL CC RED RHDP .56"

Catalog: Display Modules - LED Character and Numeric

DataSheet: MAN6740 PDF

Country of origin: -

Date code: -

MAN6740 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Obsolete
Display Format:	-
Number of Characters:	2
Size / Dimension:	0.750" H x 0.985" W x 0.315" D (19.05mm x 25.02mm x 8.00mm)
Digit/Alpha Size:	0.56" (14.22mm)
Display Type:	7-Segment
Common Pin:	Common Cathode
Color:	Red
Voltage - Forward (Vf) (Typ):	2V (Max)
Current - Test:	20mA
Millicandela Rating:	0.42mcd
Wavelength - Peak:	650nm
Power Dissipation (Max):	960mW
Package / Case:	18-DIP (0.600", 15.24mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Mar 31 - Apr 04 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price

Current price of MAN6740 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

LDD-N514RI-RA

DISP 7SEG 0.56" DBL RED 10SIP RA

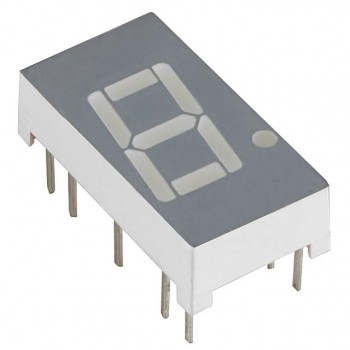

MAN4440A

DISPLAY 7SEG 0.4" SGL GRN 14DIP

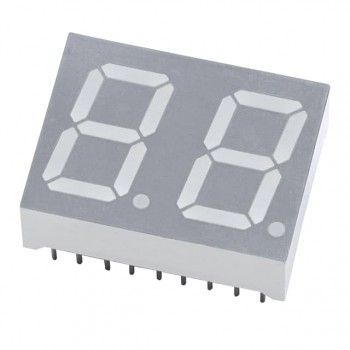

CDDA52G2WF
