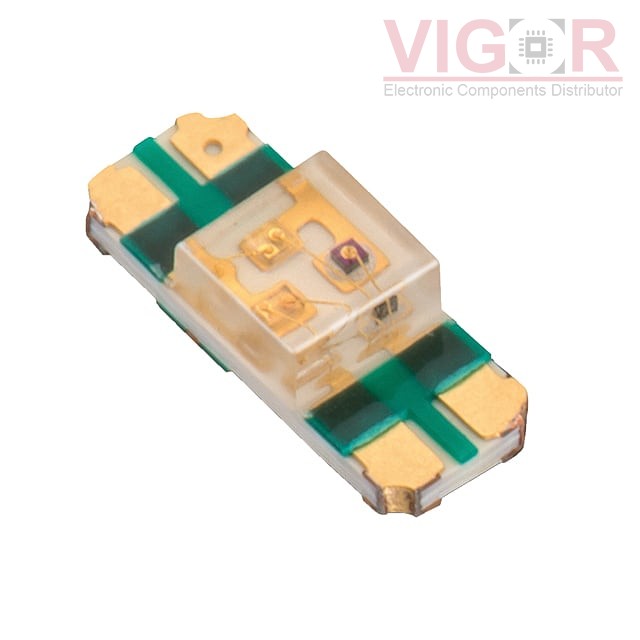

156125M173000

Part No :: 156125M173000

Manufacturer: Würth Elektronik Midcom

VIGOR # :: 1671606

Description: LED RGB CLEAR 4SMD BOTTOM ENTRY

Catalog: LED Indication - Discrete

DataSheet: 156125M173000 PDF

Country of origin: -

Date code: -

156125M173000 Specifications

Type	Description
Series:	WL-SFRW
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Color:	Red, Green, Blue (RGB)
Configuration:	Common Anode
Lens Color:	Colorless
Lens Transparency:	Clear
Millicandela Rating:	80mcd Red, 280mcd Green, 70mcd Blue
Lens Style:	Square with Flat Top
Lens Size:	1.20mm
Voltage - Forward (Vf) (Typ):	2V Red, 3.3V Green, 3.3V Blue
Current - Test:	20mA Red, 20mA Green, 20mA Blue
Viewing Angle:	120°
Mounting Type:	Surface Mount, Bottom Entry
Wavelength - Dominant:	624nm Red, 525nm Green, 470nm Blue
Wavelength - Peak:	632nm Red, 520nm Green, 468nm Blue
Features:	-
Package / Case:	4-SMD, No Lead
Supplier Device Package:	4-SMD
Size / Dimension:	3.20mm L x 1.20mm W
Height (Max):	0.80mm

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 6790

Shipped from

HK warehouse

Expected Shipping Date

Jan 13 - Jan 17 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$1.17~~	~~$1.17~~
3000	~~$0.54~~	~~$1 635.00~~

Current price of 156125M173000 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

QBLP655R-IG

LED GREEN CLEAR 1205 SMD

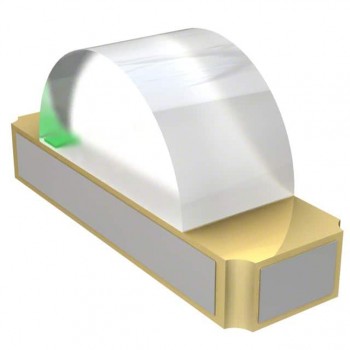

SM1204BC-A/G
