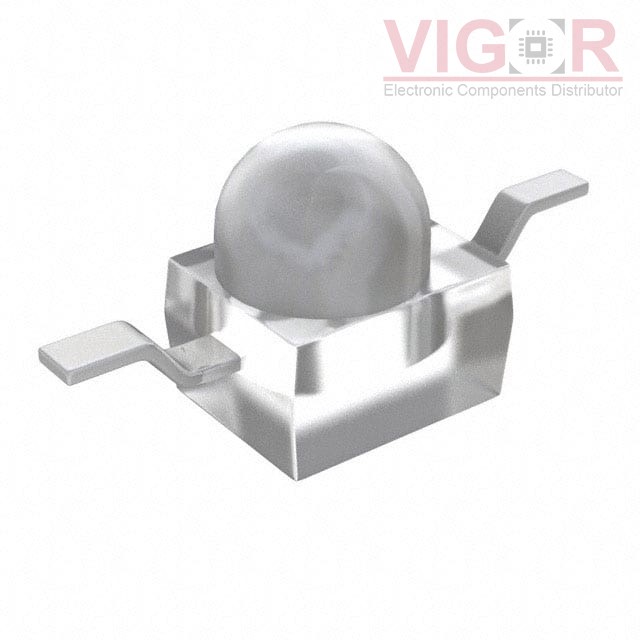

VLDS1535R-08

Part No :: VLDS1535R-08

Manufacturer: Vishay / Semiconductor - Opto Division

VIGOR # :: 1671616

Description: LED RED CLEAR 2SMD BOTTOM ENTRY

Catalog: LED Indication - Discrete

DataSheet: VLDS1535R-08 PDF

Country of origin: -

Date code: -

VLDS1535R-08 Specifications

Type	Description
Series:	VLD.1535
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Color:	Red
Configuration:	Independent
Lens Color:	Colorless
Lens Transparency:	Clear
Millicandela Rating:	5000mcd
Lens Style:	Round with Domed Top
Lens Size:	1.80mm Dia
Voltage - Forward (Vf) (Typ):	2.2V
Current - Test:	50mA
Viewing Angle:	44°
Mounting Type:	Surface Mount, Bottom Entry
Wavelength - Dominant:	630nm
Wavelength - Peak:	639nm
Features:	-
Package / Case:	2-SMD, Z-Bend
Supplier Device Package:	2-SMD
Size / Dimension:	2.30mm L x 2.30mm W
Height (Max):	2.75mm

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 397

Shipped from

HK warehouse

Expected Shipping Date

Mar 30 - Apr 03 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$0.4400~~	~~$0.44~~
1500	~~$0.1753~~	~~$262.94~~
3000	~~$0.1584~~	~~$475.20~~
7500	~~$0.1478~~	~~$1 108.80~~
10500	~~$0.1426~~	~~$1 496.88~~
37500	~~$0.1404~~	~~$5 266.88~~

Current price of VLDS1535R-08 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
