LA L296-P1R2-1-0-20-R18-Z

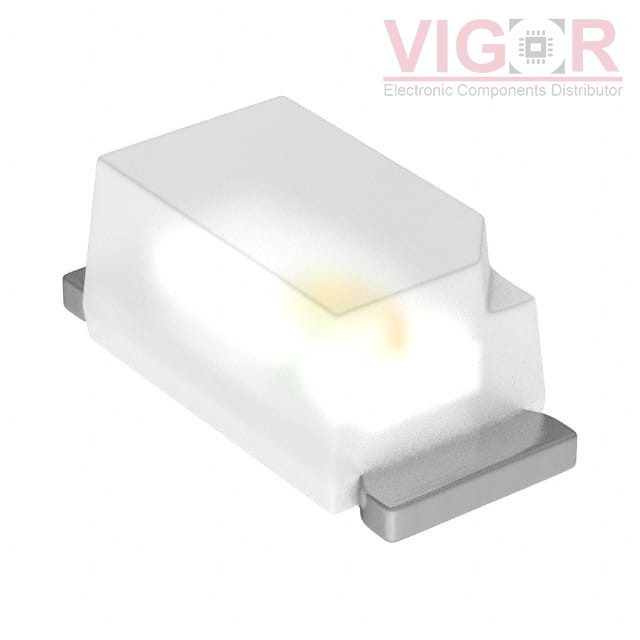

Image is for reference,
please contact us to get the real picture

Part No :: LA L296-P1R2-1-0-20-R18-Z

Manufacturer: OSRAM Opto Semiconductors, Inc.

Description: LED AMBER DIFFUSED 0603 SMD

Catalog: LED Indication - Discrete

DataSheet: LA L296-P1R2-1-0-20-R18-Z PDF

Availability: 0 pieces

Unit Price: ~~$0.08262~~

Current price of LA L296-P1R2-1-0-20-R18-Z is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

LA L296-P1R2-1-0-20-R18-Z Specifications

Type	Description
Series:	SMARTLED® 0603
Package:	Tape & Reel (TR)
Part Status:	Active
Color:	Amber
Configuration:	Standard
Lens Color:	White
Lens Transparency:	Diffused
Millicandela Rating:	112.5mcd
Lens Style:	Rectangle with Flat Top
Lens Size:	1.30mm x 0.80mm
Voltage - Forward (Vf) (Typ):	2V
Current - Test:	20mA
Viewing Angle:	160°
Mounting Type:	Surface Mount
Wavelength - Dominant:	615nm
Wavelength - Peak:	622nm
Features:	-
Package / Case:	0603 (1608 Metric)
Supplier Device Package:	0603
Size / Dimension:	1.70mm L x 0.80mm W
Height (Max):	0.65mm
