AM23ESGW

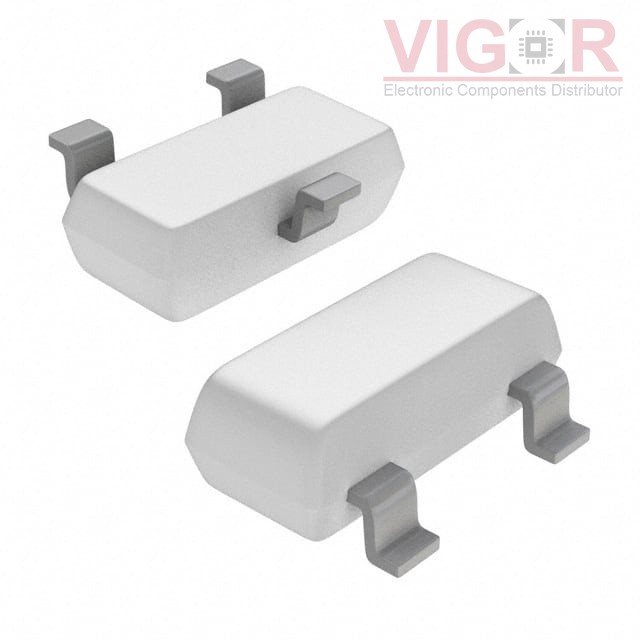

Image is for reference,
please contact us to get the real picture

Part No :: AM23ESGW

Manufacturer: Kingbright

Description: LED GRN/RED DIFFUSED SOT23-3 SMD

Catalog: LED Indication - Discrete

DataSheet: AM23ESGW PDF

Availability: 13916 pieces

Unit Price: ~~$0.68000~~

Current price of AM23ESGW is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

AM23ESGW Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Color:	Green, Red
Configuration:	Common Cathode
Lens Color:	White
Lens Transparency:	Diffused
Millicandela Rating:	9mcd Green, 5mcd Red
Lens Style:	Rectangle with Flat Top
Lens Size:	3.00mm x 1.30mm
Voltage - Forward (Vf) (Typ):	2.2V Green, 2V Red
Current - Test:	20mA Green, 20mA Red
Viewing Angle:	140°
Mounting Type:	Surface Mount
Wavelength - Dominant:	568nm Green, 617nm Red
Wavelength - Peak:	565nm Green, 627nm Red
Features:	-
Package / Case:	3-SMD, SOT-23-3 Variant
Supplier Device Package:	SOT-23-3
Size / Dimension:	3.00mm L x 1.30mm W
Height (Max):	1.20mm
