CS63BDR3C

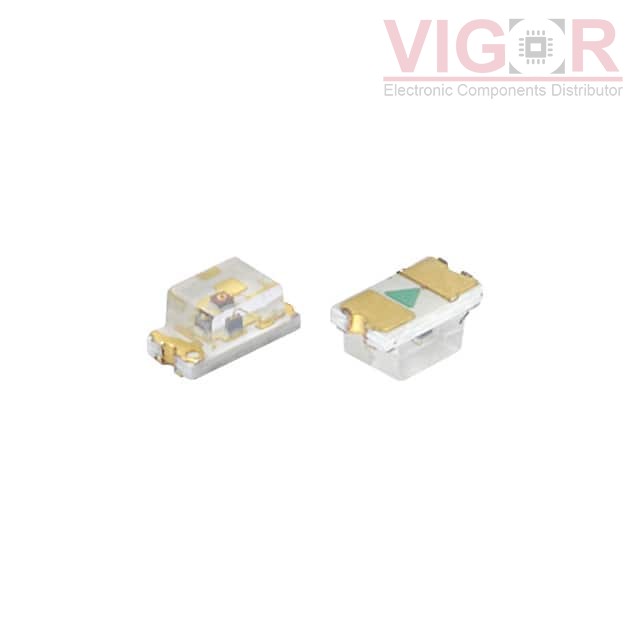

Image is for reference,
please contact us to get the real picture

Part No :: CS63BDR3C

Manufacturer: ChromeLED

Description: LED RED CLEAR CHIP 0603 SMD

Catalog: LED Indication - Discrete

DataSheet: CS63BDR3C PDF

Availability: 35 pieces

Unit Price: ~~$0.33000~~

Current price of CS63BDR3C is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

CS63BDR3C Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Active
Color:	Red
Configuration:	Standard
Lens Color:	Colorless
Lens Transparency:	Clear
Millicandela Rating:	230mcd
Lens Style:	Rectangle with Flat Top
Lens Size:	1.10mm x 0.80mm
Voltage - Forward (Vf) (Typ):	2V
Current - Test:	20mA
Viewing Angle:	140°
Mounting Type:	Surface Mount
Wavelength - Dominant:	640nm
Wavelength - Peak:	655nm
Features:	-
Package / Case:	0603 (1608 Metric)
Supplier Device Package:	Chip LED
Size / Dimension:	1.60mm L x 0.80mm W
Height (Max):	0.80mm
