AM23SGD-F

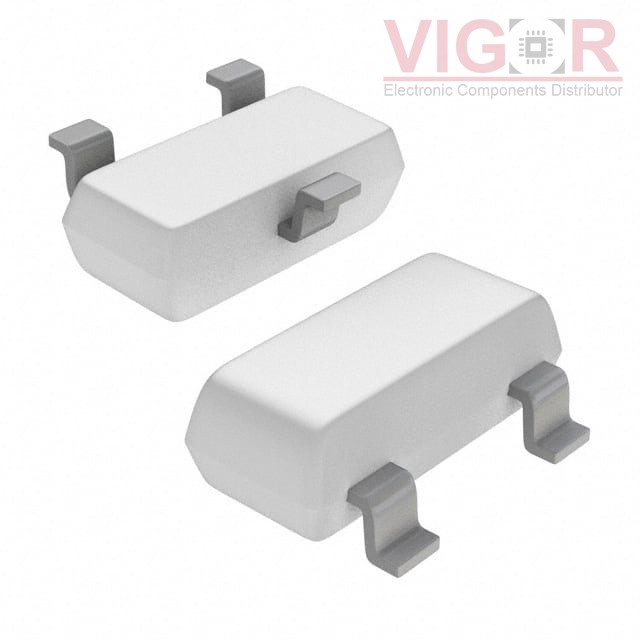

Image is for reference,
please contact us to get the real picture

Part No :: AM23SGD-F

Manufacturer: Kingbright

Description: LED GREEN DIFFUSED SOT23-3 SMD

Catalog: LED Indication - Discrete

DataSheet: AM23SGD-F PDF

Availability: 9838 pieces

Unit Price: ~~$0.50000~~

Current price of AM23SGD-F is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

AM23SGD-F Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Color:	Green
Configuration:	Standard
Lens Color:	Green
Lens Transparency:	Diffused
Millicandela Rating:	8mcd
Lens Style:	Rectangle with Flat Top
Lens Size:	3.00mm x 1.30mm
Voltage - Forward (Vf) (Typ):	2.2V
Current - Test:	20mA
Viewing Angle:	140°
Mounting Type:	Surface Mount
Wavelength - Dominant:	568nm
Wavelength - Peak:	565nm
Features:	-
Package / Case:	TO-236-3, SC-59, SOT-23-3
Supplier Device Package:	SOT-23-3
Size / Dimension:	3.00mm L x 1.30mm W
Height (Max):	1.20mm
