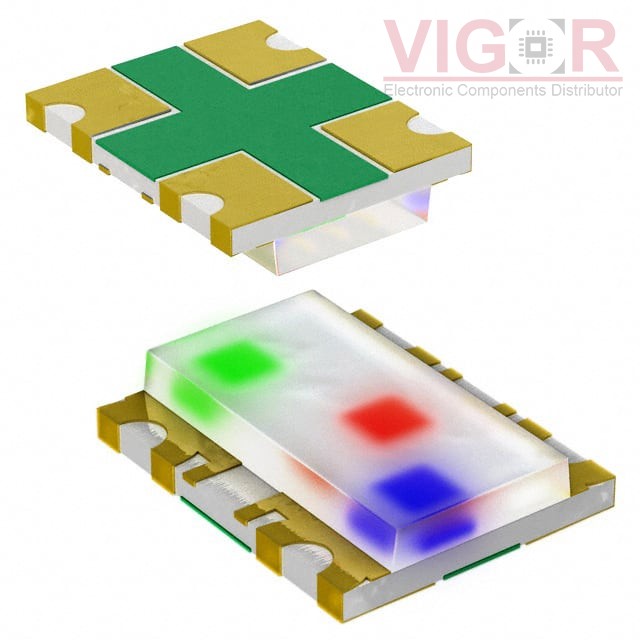

LNJ757W86RA

Part No :: LNJ757W86RA

Manufacturer: Panasonic

Description: LED RGB CHIP 628NM 525 470NM SMD

Catalog: LED Indication - Discrete

DataSheet: LNJ757W86RA PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of LNJ757W86RA is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

LNJ757W86RA Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Color:	Red, Green, Blue (RGB)
Configuration:	Common Anode
Lens Color:	-
Lens Transparency:	-
Millicandela Rating:	30mcd Red, 90mcd Green, 15mcd Blue
Lens Style:	Rectangle with Flat Top
Lens Size:	1.30mm x 0.70mm
Voltage - Forward (Vf) (Typ):	1.9V Red, 3V Green, 2.95V Blue
Current - Test:	5mA Red, 5mA Green, 5mA Blue
Viewing Angle:	-
Mounting Type:	Surface Mount
Wavelength - Dominant:	628nm Red, 525nm Green, 470nm Blue
Wavelength - Peak:	643nm Red, 520nm Green, 462nm Blue
Features:	-
Package / Case:	4-SMD, No Lead
Supplier Device Package:	Chip LED
Size / Dimension:	1.30mm L x 1.05mm W
Height (Max):	0.35mm

Please confirm the specifications of the products when ordering.
