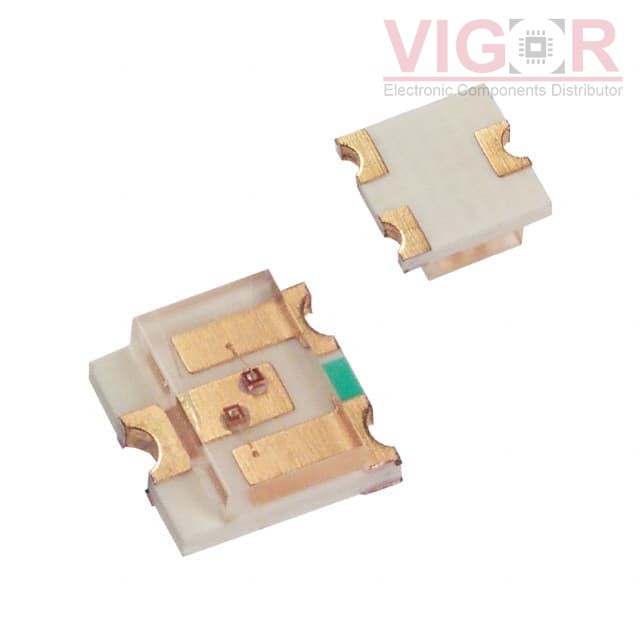

SML-LX15GIC-TR

Part No :: SML-LX15GIC-TR

Manufacturer: Lumex, Inc.

Description: LED GREEN/RED CLEAR SOT23 SMD

Catalog: LED Indication - Discrete

DataSheet: SML-LX15GIC-TR PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of SML-LX15GIC-TR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SML-LX15GIC-TR Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Active
Color:	Green, Red
Configuration:	Common Anode
Lens Color:	Colorless
Lens Transparency:	Clear
Millicandela Rating:	10mcd Green, 10mcd Red
Lens Style:	Rectangle with Flat Top
Lens Size:	2.00mm x 3.00mm
Voltage - Forward (Vf) (Typ):	2.2V Green, 2V Red
Current - Test:	20mA Green, 20mA Red
Viewing Angle:	140°
Mounting Type:	Surface Mount
Wavelength - Dominant:	-
Wavelength - Peak:	565nm Green, 635nm Red
Features:	-
Package / Case:	TO-236, SC-59, SOT-23-3 variant, 3-SMD
Supplier Device Package:	SOT-23
Size / Dimension:	3.00mm L x 3.00mm W
Height (Max):	1.00mm

Please confirm the specifications of the products when ordering.
