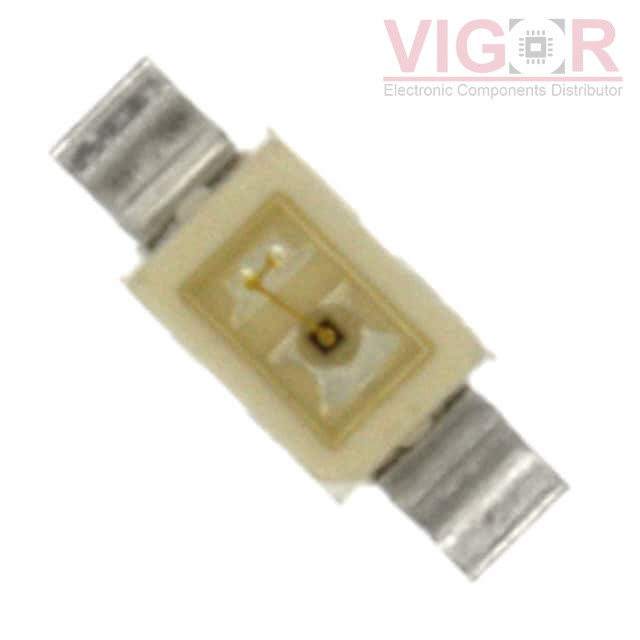

LS M47K-H2K1-1-Z

Image is for reference,
please contact us to get the real picture

Part No :: LS M47K-H2K1-1-Z

Manufacturer: OSRAM Opto Semiconductors, Inc.

Description: LED RED CLEAR SMD BOTTOM ENTRY

Catalog: LED Indication - Discrete

DataSheet: LS M47K-H2K1-1-Z PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of LS M47K-H2K1-1-Z is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

LS M47K-H2K1-1-Z Specifications

Type	Description
Series:	Mini TOPLED® Santana
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Color:	Red
Configuration:	Standard
Lens Color:	Colorless
Lens Transparency:	Clear
Millicandela Rating:	6.275mcd
Lens Style:	Rectangle with Flat Top
Lens Size:	1.50mm x 1.00mm
Voltage - Forward (Vf) (Typ):	1.8V
Current - Test:	2mA
Viewing Angle:	120°
Mounting Type:	Surface Mount, Bottom Entry
Wavelength - Dominant:	630nm
Wavelength - Peak:	643nm
Features:	-
Package / Case:	2-SMD, Z-Bend
Supplier Device Package:	SMD
Size / Dimension:	4.00mm L x 1.40mm W
Height (Max):	1.50mm
