LS T776-R1S1-1-Z

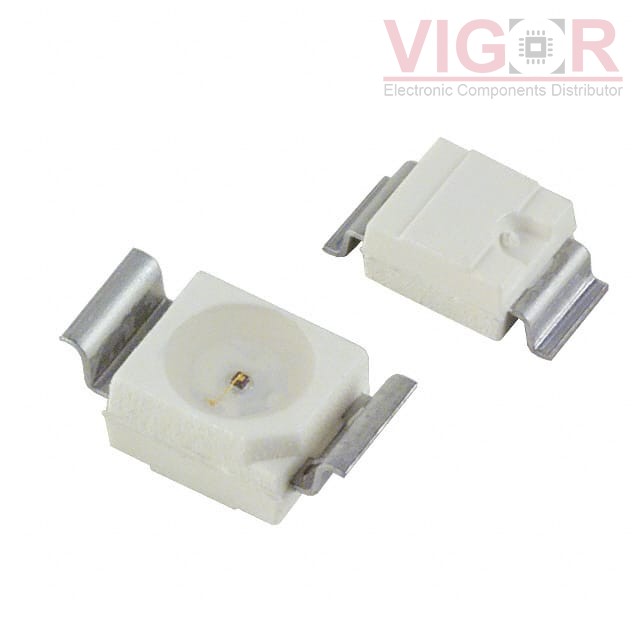

Image is for reference,
please contact us to get the real picture

Part No :: LS T776-R1S1-1-Z

Manufacturer: OSRAM Opto Semiconductors, Inc.

Description: LED RED CLEAR SMD BOTTOM ENTRY

Catalog: LED Indication - Discrete

DataSheet: LS T776-R1S1-1-Z PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of LS T776-R1S1-1-Z is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

LS T776-R1S1-1-Z Specifications

Type	Description
Series:	TOPLED® - Reverse Gullwing
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Color:	Red
Configuration:	Standard
Lens Color:	Colorless
Lens Transparency:	Clear
Millicandela Rating:	168mcd
Lens Style:	Round with Flat Top
Lens Size:	2.40mm Dia
Voltage - Forward (Vf) (Typ):	2V
Current - Test:	20mA
Viewing Angle:	120°
Mounting Type:	Surface Mount, Bottom Entry
Wavelength - Dominant:	633nm
Wavelength - Peak:	645nm
Features:	-
Package / Case:	2-SMD, Z-Bend
Supplier Device Package:	SMD
Size / Dimension:	3.20mm L x 2.80mm W
Height (Max):	2.10mm
