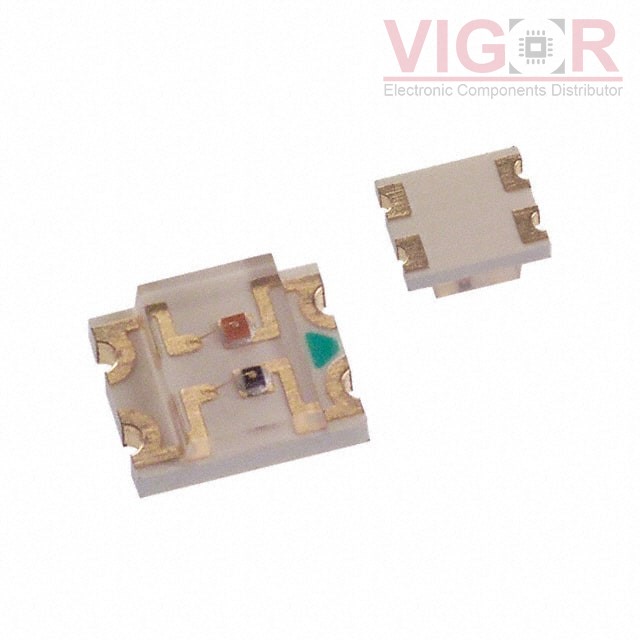

CMD15-22VRVGC/TR8

Part No :: CMD15-22VRVGC/TR8

Manufacturer: Visual Communications Company, LLC

VIGOR # :: 4458088

Description: LED GREEN/RED CLEAR 1206 SMD

Catalog: LED Indication - Discrete

DataSheet: CMD15-22VRVGC/TR8 PDF

Country of origin: -

Date code: -

CMD15-22VRVGC/TR8 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Color:	Green, Red
Configuration:	Independent
Lens Color:	Colorless
Lens Transparency:	Clear
Millicandela Rating:	10mcd Green, 20mcd Red
Lens Style:	Rectangle with Flat Top
Lens Size:	2.00mm x 1.50mm
Voltage - Forward (Vf) (Typ):	2.1V Green, 2.8V Red
Current - Test:	20mA Green, 20mA Red
Viewing Angle:	-
Mounting Type:	Surface Mount
Wavelength - Dominant:	-
Wavelength - Peak:	570nm Green, 640nm Red
Features:	-
Package / Case:	4-SMD, No Lead
Supplier Device Package:	1206
Size / Dimension:	3.20mm L x 2.70mm W
Height (Max):	1.10mm

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Dec 30 - Jan 03 2025

Pricing(USD)

Quantity	Unit Price	Ext. Price

Current price of CMD15-22VRVGC/TR8 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
