| Type | Description |
|---|---|
| Series: | CL-L104 |
| Package: | Tray |
| Part Status: | Active |

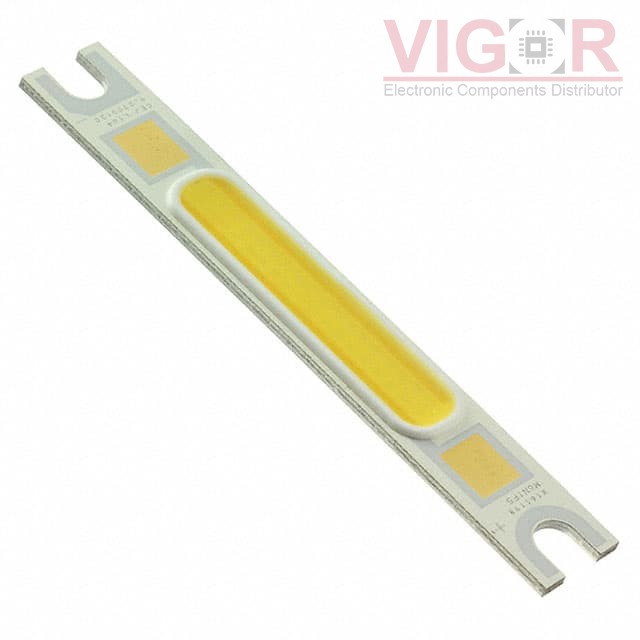

| Type: | Chip On Board (COB) |
| Color: | White, Warm |
| CCT (K): | 3000K 3-Step MacAdam Ellipse |
| Wavelength: | - |
| Configuration: | Rectangle |
| Luminous Flux @ Current/Temperature: | 305lm (Typ) |
| Current - Test: | 350mA |
| Temperature - Test: | 25°C |
| Voltage - Forward (Vf) (Typ): | 9.2V |
| Lumens/Watt @ Current - Test: | 95 lm/W |
| Current - Max: | 720mA |
| CRI (Color Rendering Index): | 85 (Typ) |
| Viewing Angle: | - |
| Features: | - |
| Size / Dimension: | 50.00mm L x 7.00mm W |
| Height: | 1.35mm |
| Light Emitting Surface (LES): | - |
| Lens Type: | Flat |
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ||
| 10 | ||
| 50 | ||
| 100 | ||
| 250 | ||
| 500 | ||
| 1000 |
Current price of CL-L104-MC3L1-F5 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
