PTV09A-4020F-B503

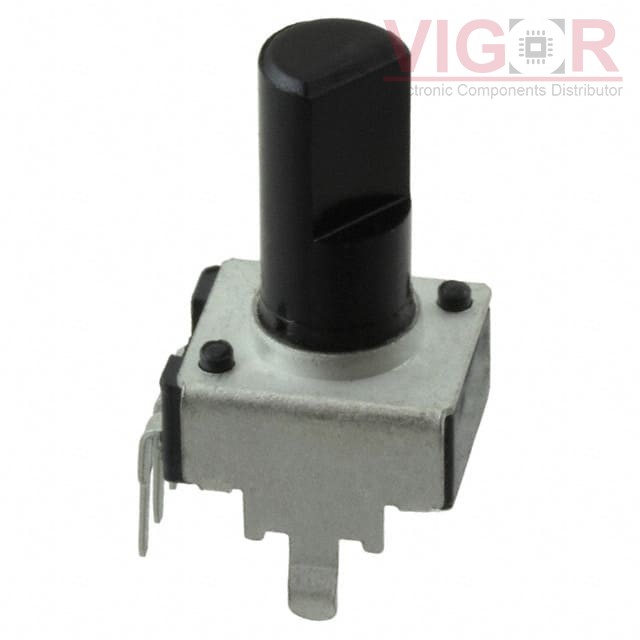

Image is for reference,
please contact us to get the real picture

Part No :: PTV09A-4020F-B503

Manufacturer: J.W. Miller / Bourns

Description: POT 50K OHM 1/20W CARBON LINEAR

Catalog: Rotary Potentiometers, Rheostats

DataSheet: PTV09A-4020F-B503 PDF

Availability: 1000 pieces

Unit Price: ~~$0.83000~~

Current price of PTV09A-4020F-B503 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

PTV09A-4020F-B503 Specifications

Type	Description
Series:	Pro Audio PTV09
Package:	Tray
Part Status:	Active
Resistance (Ohms):	50k
Tolerance:	±20%
Power (Watts):	0.05W, 1/20W
Built in Switch:	None
Number of Turns:	1
Taper:	Linear
Number of Gangs:	1
Adjustment Type:	Top Adjustment
Temperature Coefficient:	-
Rotation:	280°
Resistive Material:	Carbon
Termination Style:	PC Pins, Board Locks
Actuator Type:	Flatted
Actuator Length:	0.787" (20.00mm)
Actuator Diameter:	0.236" (6.00mm)
Bushing Thread:	-
Mounting Type:	Through Hole, Snap In
