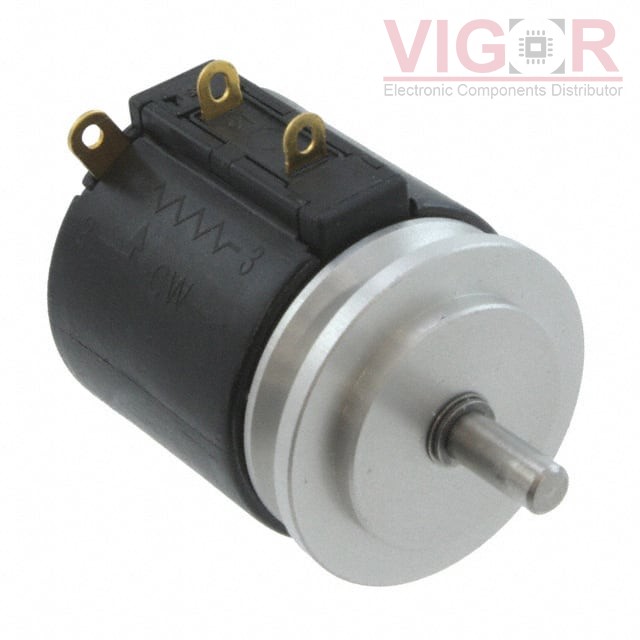

3549S-1AD-103A

Part No :: 3549S-1AD-103A

Manufacturer: J.W. Miller / Bourns

VIGOR # :: 1657907

Description: POT 10K OHM 2W WIREWOUND LINEAR

Catalog: Rotary Potentiometers, Rheostats

DataSheet: 3549S-1AD-103A PDF

Country of origin: -

Date code: -

3549S-1AD-103A Specifications

Type	Description
Series:	3549
Package:	Tray
Part Status:	Active
Resistance (Ohms):	10k
Tolerance:	±3%
Power (Watts):	2W
Built in Switch:	None
Number of Turns:	10
Taper:	Linear
Number of Gangs:	1
Adjustment Type:	User Defined
Temperature Coefficient:	±50ppm/°C
Rotation:	3600°
Resistive Material:	Wirewound
Termination Style:	Solder Lug
Actuator Type:	Slotted
Actuator Length:	0.811" (20.60mm)
Actuator Diameter:	0.236" (6.00mm)
Bushing Thread:	M9 x 0.75
Mounting Type:	Panel Mount

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Jan 31 - Feb 04 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$16.22~~	~~$16.22~~
50	~~$14.38~~	~~$719.10~~

Current price of 3549S-1AD-103A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
