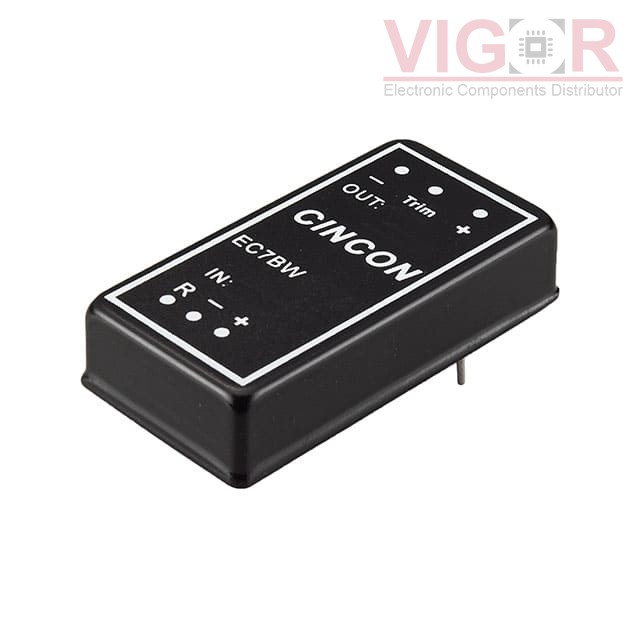

EC7BW-48S05N

Part No :: EC7BW-48S05N

Manufacturer: Cincon

VIGOR # :: 4098214

Description: DC DC CONVERTER 5V 20W

Catalog: DC DC Converters

DataSheet: EC7BW-48S05N PDF

Country of origin: -

Date code: -

EC7BW-48S05N Specifications

Type	Description
Series:	EC7BW (20W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	18V
Voltage - Input (Max):	75V
Voltage - Output 1:	5V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	4A
Power (Watts):	20 W
Voltage - Isolation:	1.5 kV
Applications:	ITE (Commercial), Railway
Features:	Remote On/Off, OCP, OVP, SCP, UVLO
Operating Temperature:	-40°C ~ 85°C (With Derating)
Efficiency:	90%
Mounting Type:	Through Hole
Package / Case:	6-DIP Module
Size / Dimension:	2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
Supplier Device Package:	-
Control Features:	Enable, Active Low
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
JTD2048S05 Match 91%	XP Power DC DC CONVERTER 5V 20W	EC7BW-48S05N vs JTD2048S05
JTK2048S05 Match 99%	XP Power DC DC CONVERTER 5V 20W	EC7BW-48S05N vs JTK2048S05
SKMW20G-05 Match 100%	MEAN WELL DC DC CONVERTER 5V 20W	EC7BW-48S05N vs SKMW20G-05
THN 20-4811WIR Match 93%	TRACO Power 20 WATT DC/DC CONVERTER, RAILWAY	EC7BW-48S05N vs THN 20-4811WIR
PYBE20-Q48-S5 Match 100%	CUI Inc. DC DC CONVERTER 5V 20W	EC7BW-48S05N vs PYBE20-Q48-S5
EC7BW-48S05 Match 100%	Cincon DC DC CONVERTER 5V 20W	EC7BW-48S05N vs EC7BW-48S05

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 470

Shipped from

HK warehouse

Expected Shipping Date

Aug 25 - Aug 29 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$41.1900~~	~~$41.19~~
12	~~$40.7817~~	~~$489.38~~

Current price of EC7BW-48S05N is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
