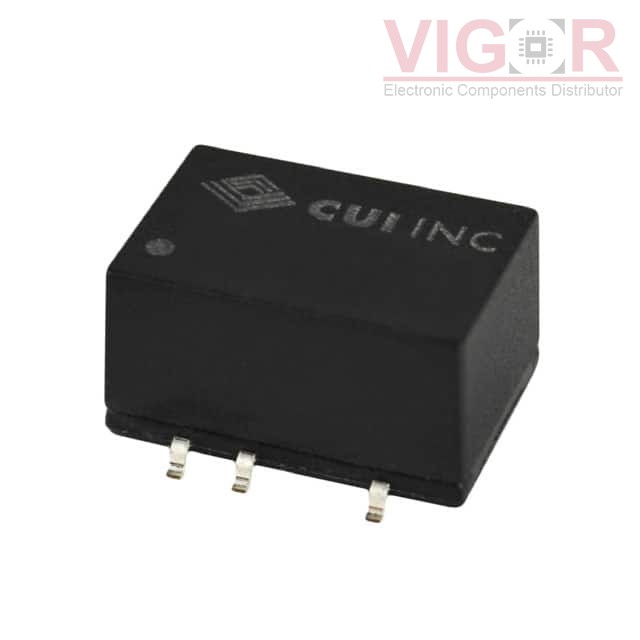

PCN1-S5-D15-M-TR

Part No :: PCN1-S5-D15-M-TR

Manufacturer: CUI Inc.

Description: DC DC CONVERTER +/-15V 1W

Catalog: DC DC Converters

DataSheet: PCN1-S5-D15-M-TR PDF

Availability: 420 pieces

Unit Price: ~~$4.95000~~

Current price of PCN1-S5-D15-M-TR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

PCN1-S5-D15-M-TR Specifications

Type	Description
Series:	PCN1-M (1W)
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	2
Voltage - Input (Min):	4.5V
Voltage - Input (Max):	5.5V
Voltage - Output 1:	15V
Voltage - Output 2:	-15V
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	33mA, 33mA
Power (Watts):	1 W
Voltage - Isolation:	1.5 kV
Applications:	ITE (Commercial)
Features:	-
Operating Temperature:	-40°C ~ 100°C
Efficiency:	78%
Mounting Type:	Surface Mount
Package / Case:	10-SMD Module, 6 Leads
Size / Dimension:	0.64" L x 0.36" W x 0.30" H (16.3mm x 9.1mm x 7.6mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	EN
Standard Number:	55032 Class A

Please confirm the specifications of the products when ordering.
