PDM2-S12-D9-D

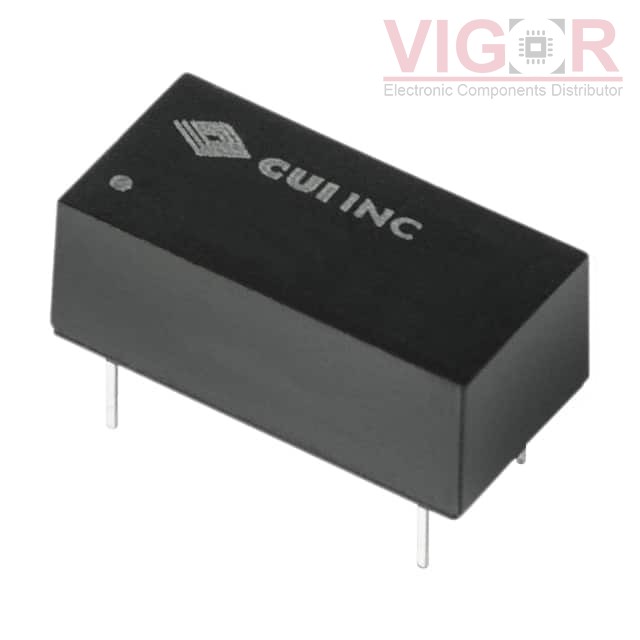

Product image
Product thumb
Part No :

PDM2-S12-D9-D

Manufacturer
CUI Inc.
VIGOR # :

4100453

Description
DC DC CONVERTER +/-9V 2W
Catalog
DC DC Converters
DataSheet
PDM2-S12-D9-D PDF
Country of origin
-
Date code
-
ads
PDM2-S12-D9-D Specifications
Type Description
Series:PDM2-D (2W)
Package:Tube
Part Status:Active
Type:Isolated Module
Number of Outputs:2
Voltage - Input (Min):10.8V
Voltage - Input (Max):13.2V
Voltage - Output 1:9V
Voltage - Output 2:-9V
Voltage - Output 3:-
Voltage - Output 4:-
Current - Output (Max):111mA, 111mA
Power (Watts):2 W
Voltage - Isolation:1.5 kV
Applications:ITE (Commercial)
Features:SCP
Operating Temperature:-40°C ~ 105°C (With Derating)
Efficiency:84%
Mounting Type:Through Hole
Package / Case:14-DIP Module, 6 Leads
Size / Dimension:0.80" L x 0.40" W x 0.32" H (20.3mm x 10.2mm x 8.2mm)
Supplier Device Package:-
Control Features:-
Approval Agency:CB Scheme, EN, IEC, UL
Standard Number:55024; 55032 Class A; 60950-1
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 1516
Shipped from
HK warehouse
Expected Shipping Date
Apr 06 - Apr 10 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $7.7700 $7.77
5 $7.6600 $38.30
11 $7.5482 $83.03
33 $7.3261 $241.76
55 $7.1040 $390.72
110 $6.8820 $757.02
253 $6.6600 $1 684.98
506 $6.2160 $3 145.30

Current price of PDM2-S12-D9-D is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
