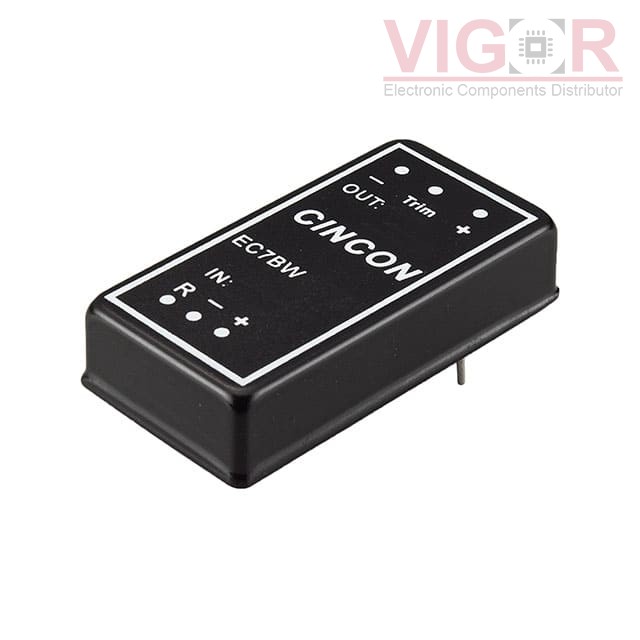

EC7BW-24S15N

Part No :: EC7BW-24S15N

Manufacturer: Cincon

VIGOR # :: 4100528

Description: DC DC CONVERTER 15V 20W

Catalog: DC DC Converters

DataSheet: EC7BW-24S15N PDF

Country of origin: -

Date code: -

EC7BW-24S15N Specifications

Type	Description
Series:	EC7BW (20W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	9V
Voltage - Input (Max):	36V
Voltage - Output 1:	15V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	1.33A
Power (Watts):	20 W
Voltage - Isolation:	1.5 kV
Applications:	ITE (Commercial), Railway
Features:	Remote On/Off, OCP, OVP, SCP, UVLO
Operating Temperature:	-40°C ~ 85°C (With Derating)
Efficiency:	90%
Mounting Type:	Through Hole
Package / Case:	6-DIP Module
Size / Dimension:	2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
Supplier Device Package:	-
Control Features:	Enable, Active Low
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
RPA20-2415SAW/N-HC Match 99%	RECOM Power DC DC CONVERTER 15V 20W	EC7BW-24S15N vs RPA20-2415SAW/N-HC
S24SE15001PDFA Match 99%	Delta Electronics / Power DC DC CONVERTER 15V 20W	EC7BW-24S15N vs S24SE15001PDFA
AM20EW-2415SZ Match 99%	DComponents DC DC CONVERTER 15V 20W	EC7BW-24S15N vs AM20EW-2415SZ
JTK2024S15 Match 99%	XP Power DC DC CONVERTER 15V 20W	EC7BW-24S15N vs JTK2024S15
RPA20-2415SAW Match 99%	RECOM Power DC DC CONVERTER 15V 20W	EC7BW-24S15N vs RPA20-2415SAW
RPA20-2415SAW/N Match 99%	RECOM Power DC DC CONVERTER 15V 20W	EC7BW-24S15N vs RPA20-2415SAW/N

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 1029

Shipped from

HK warehouse

Expected Shipping Date

Sep 07 - Sep 11 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$41.1900~~	~~$41.19~~
12	~~$40.7817~~	~~$489.38~~

Current price of EC7BW-24S15N is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
