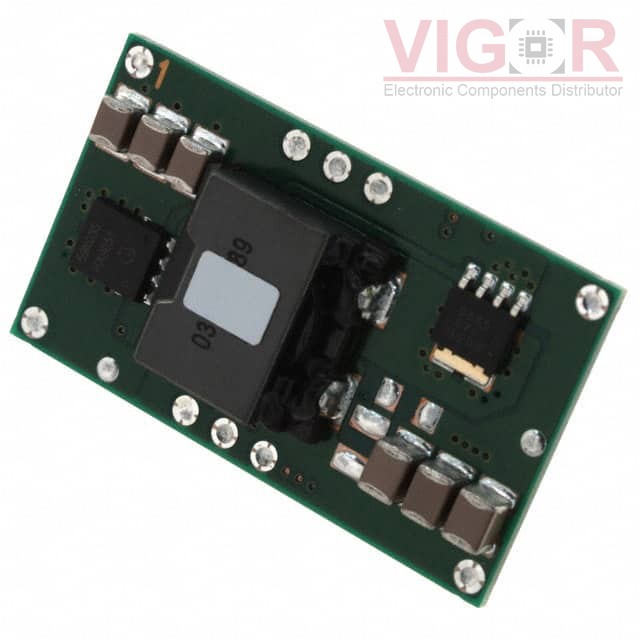

PTH12020LAZT

Part No :: PTH12020LAZT

Manufacturer: VIGOR

VIGOR # :: 4100876

Description: PTH12020L 0.8 TO 1.8 V 18-A, 12-

Catalog: DC DC Converters

DataSheet: PTH12020LAZT PDF

Country of origin: -

Date code: -

PTH12020LAZT Specifications

Type	Description
Series:	PTH12020 (99W)
Package:	Bulk
Part Status:	Active
Type:	Non-Isolated PoL Module
Number of Outputs:	1
Voltage - Input (Min):	10.8V
Voltage - Input (Max):	13.2V
Voltage - Output 1:	0.8 ~ 1.8V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	18A
Power (Watts):	99 W
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	Remote On/Off, OTP, SCP, UVLO
Operating Temperature:	-40°C ~ 85°C
Efficiency:	89%
Mounting Type:	Surface Mount
Package / Case:	10-SMD Module
Size / Dimension:	1.50" L x 0.87" W x 0.35" H (38.1mm x 22.1mm x 9.0mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
PTH12020LAST Match 100%	VIGOR PTH12020L 0.8 TO 1.8 V 18-A, 12-	PTH12020LAZT vs PTH12020LAST
PTH12020WAZ Match 100%	Texas Instruments DC DC CONVERTER 1.2-5.5V 99W	PTH12020LAZT vs PTH12020WAZ
PTH12020WAST Match 100%	VIGOR PTH12020W 1.2 TO 5.5 V 18-A, 12-	PTH12020LAZT vs PTH12020WAST
PTH12020WAS Match 100%	Texas Instruments DC DC CONVERTER 1.2-5.5V 99W	PTH12020LAZT vs PTH12020WAS
PTH12020LAS Match 100%	VIGOR PTH12020L 0.8 TO 1.8 V 18-A, 12-	PTH12020LAZT vs PTH12020LAS
PTH12020LAZ Match 100%	Texas Instruments DC DC CONVERTER 0.8-1.8V 32W	PTH12020LAZT vs PTH12020LAZ

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 247

Shipped from

HK warehouse

Expected Shipping Date

Jul 22 - Jul 26 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$25.0400~~	~~$25.04~~
200	~~$23.2416~~	~~$4 648.33~~

Current price of PTH12020LAZT is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
