PTH12020WAZ

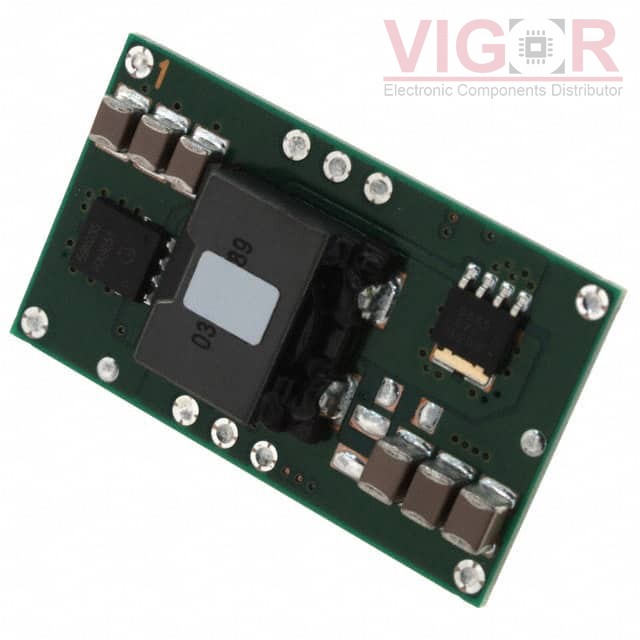

Image is for reference,
please contact us to get the real picture

Part No :: PTH12020WAZ

Manufacturer: Texas Instruments

Description: DC DC CONVERTER 1.2-5.5V 99W

Catalog: DC DC Converters

DataSheet: PTH12020WAZ PDF

Availability: 1885 pieces

Unit Price: ~~$28.01000~~

Current price of PTH12020WAZ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

PTH12020WAZ Specifications

Type	Description
Series:	PTH12020
Package:	Tray
Part Status:	Active
Type:	Non-Isolated PoL Module
Number of Outputs:	1
Voltage - Input (Min):	10.8V
Voltage - Input (Max):	13.2V
Voltage - Output 1:	1.2 ~ 5.5V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	18A
Power (Watts):	-
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	Remote On/Off, OCP, OTP, UVLO
Operating Temperature:	-40°C ~ 85°C
Efficiency:	95%
Mounting Type:	Surface Mount
Package / Case:	10-SMD Module
Size / Dimension:	1.49" L x 0.87" W x 0.38" H (38.0mm x 22.1mm x 9.6mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-
