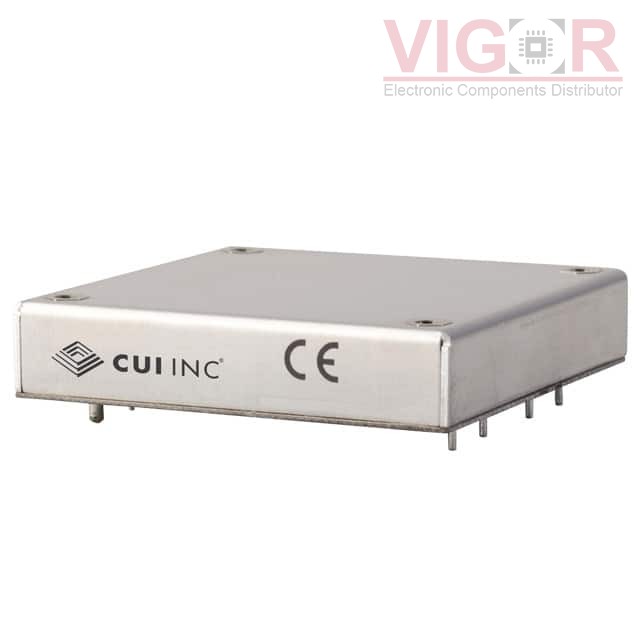

VHE100W-Q24-S5

Part No :: VHE100W-Q24-S5

Manufacturer: CUI Inc.

VIGOR # :: 4101911

Description: DC DC CONVERTER 5V 100W

Catalog: DC DC Converters

DataSheet: VHE100W-Q24-S5 PDF

Country of origin: -

Date code: -

VHE100W-Q24-S5 Specifications

Type	Description
Series:	VHE100W (100W)
Package:	Box
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	9V
Voltage - Input (Max):	36V
Voltage - Output 1:	5V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	20A
Power (Watts):	100 W
Voltage - Isolation:	1.5 kV
Applications:	ITE (Commercial)
Features:	Remote On/Off, OCP, OTP, OVP, SCP, UVLO
Operating Temperature:	-40°C ~ 105°C
Efficiency:	89.5%
Mounting Type:	Through Hole
Package / Case:	9-DIP Module
Size / Dimension:	2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm)
Supplier Device Package:	-
Control Features:	Enable, Active High
Approval Agency:	EN
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
VHE100W-Q24-S3R3 Match 55%	CUI Inc. DC DC CONVERTER 3.3V 100W	VHE100W-Q24-S5 vs VHE100W-Q24-S3R3
DCM3623T50T0680T00 Match 79%	Vicor DC DC CONVERTER 5V 80W	VHE100W-Q24-S5 vs DCM3623T50T0680T00
DCM3623T50T0680M00 Match 79%	Vicor DC DC CONVERTER 5V 80W	VHE100W-Q24-S5 vs DCM3623T50T0680M00
DCM3623T50T0680M70 Match 79%	Vicor DC DC CONVERTER 5V 80W	VHE100W-Q24-S5 vs DCM3623T50T0680M70
DCM3623T50T0680T70 Match 79%	Vicor DC DC CONVERTER 5V 80W	VHE100W-Q24-S5 vs DCM3623T50T0680T70

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 1846

Shipped from

HK warehouse

Expected Shipping Date

Jul 21 - Jul 25 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$153.5800~~	~~$153.58~~
48	~~$153.5800~~	~~$7 371.84~~

Current price of VHE100W-Q24-S5 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
