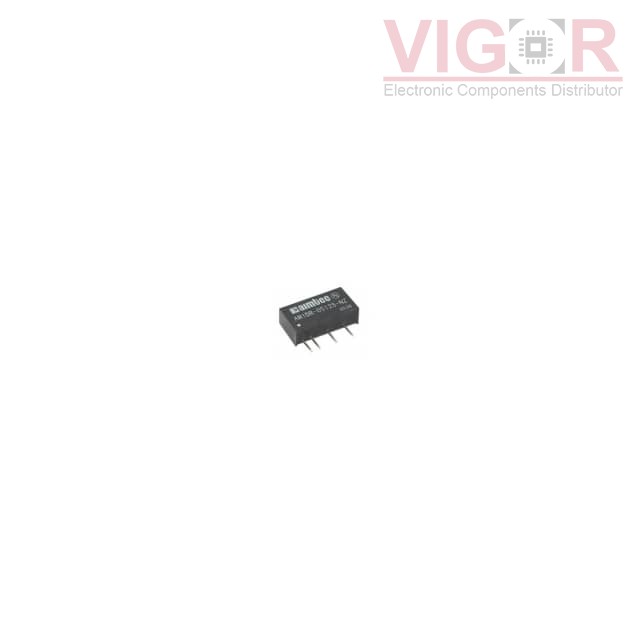

AM1DR-2415SH30-NZ

Part No :: AM1DR-2415SH30-NZ

Manufacturer: DComponents

VIGOR # :: 4101959

Description: DC DC CONVERTER 15V 1W

Catalog: DC DC Converters

DataSheet: AM1DR-2415SH30-NZ PDF

Country of origin: -

Date code: -

AM1DR-2415SH30-NZ Specifications

Type	Description
Series:	AM1DR-NZ (1W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	22.8V
Voltage - Input (Max):	25.2V
Voltage - Output 1:	15V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	67mA
Power (Watts):	1 W
Voltage - Isolation:	3 kV
Applications:	ITE (Commercial)
Features:	-
Operating Temperature:	-40°C ~ 85°C (With Derating)
Efficiency:	74%
Mounting Type:	Through Hole
Package / Case:	7-SIP Module, 4 Leads
Size / Dimension:	0.77" L x 0.24" W x 0.40" H (19.6mm x 6.0mm x 10.2mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	cULus, cURus
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
TMV 2415S Match 100%	TRACO Power DC DC CONVERTER 15V 1W	AM1DR-2415SH30-NZ vs TMV 2415S
PD01S2415A Match 100%	Delta Electronics / Power DC DC CONVERTER 15V 1W	AM1DR-2415SH30-NZ vs PD01S2415A
AM1D-2415SH60Z Match 91%	DComponents DC DC CONVERTER 15V 1W	AM1DR-2415SH30-NZ vs AM1D-2415SH60Z
AM1DS-2415SH52Z Match 93%	DComponents DC DC CONVERTER 15V 1W	AM1DR-2415SH30-NZ vs AM1DS-2415SH52Z
AM1DS-2415SH40Z Match 96%	DComponents DC DC CONVERTER 15V 1W	AM1DR-2415SH30-NZ vs AM1DS-2415SH40Z
ITV2415SA Match 100%	XP Power DC DC CONVERTER 15V 1W	AM1DR-2415SH30-NZ vs ITV2415SA
