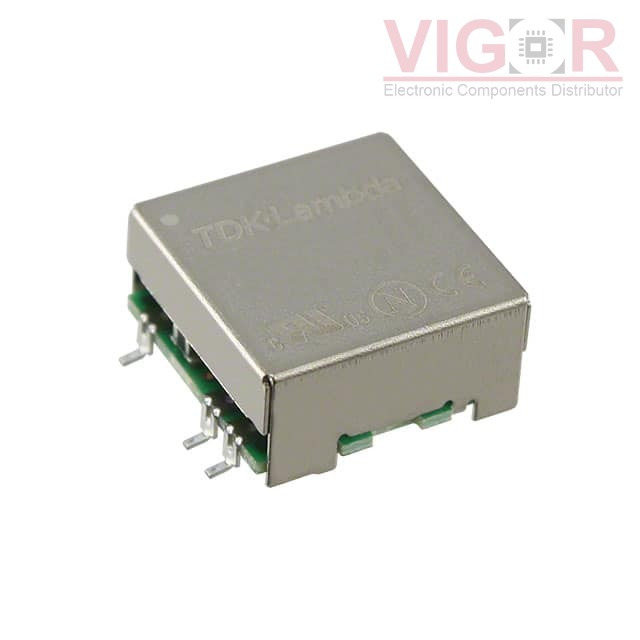

CC1R5-0505SR-E

Part No :: CC1R5-0505SR-E

Manufacturer: TDK-Lambda, Inc.

VIGOR # :: 4102182

Description: DC DC CONVERTER 5V 1W

Catalog: DC DC Converters

DataSheet: CC1R5-0505SR-E PDF

Country of origin: -

Date code: -

CC1R5-0505SR-E Specifications

Type	Description
Series:	CC-E (1.5W)
Package:	Tray
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	4.5V
Voltage - Input (Max):	9V
Voltage - Output 1:	5V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	300mA
Power (Watts):	1 W
Voltage - Isolation:	500 V
Applications:	ITE (Commercial)
Features:	-
Operating Temperature:	-40°C ~ 85°C
Efficiency:	-
Mounting Type:	Surface Mount
Package / Case:	7-SMD Module
Size / Dimension:	0.65" L x 0.65" W x 0.35" H (16.5mm x 16.6mm x 8.8mm)
Supplier Device Package:	-
Control Features:	Enable, Active Low
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
CC3-0512SR-E Match 55%	TDK-Lambda, Inc. DC DC CONVERTER 12-15V 3W	CC1R5-0505SR-E vs CC3-0512SR-E
CC1R5-0503SR-E Match 52%	TDK-Lambda, Inc. DC DC CONVERTER 3.3V 1W	CC1R5-0505SR-E vs CC1R5-0503SR-E
BLA05-05S30 Match 87%	Bellnix Co., LTD. DC DC CONVERTER 5V 1.5W	CC1R5-0505SR-E vs BLA05-05S30
CC3-0505SR-E Match 50%	TDK-Lambda, Inc. DC DC CONVERTER 5V 3W	CC1R5-0505SR-E vs CC3-0505SR-E
