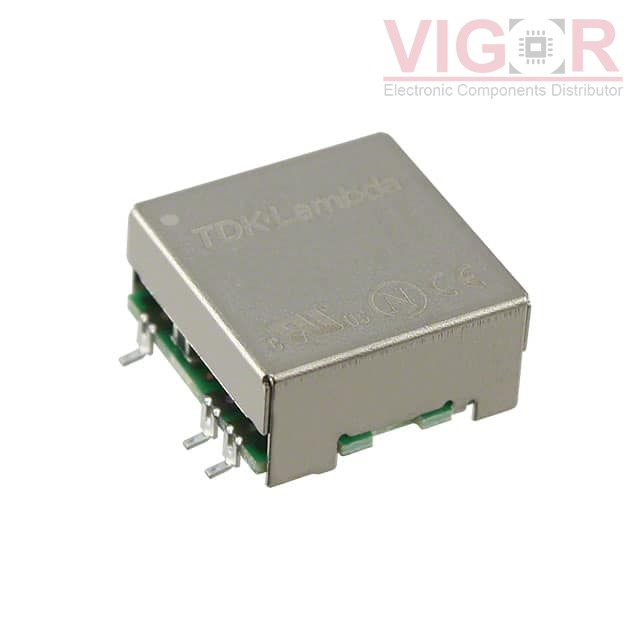

CC1R5-0503SR-E

Part No :: CC1R5-0503SR-E

Manufacturer: TDK-Lambda, Inc.

VIGOR # :: 4153637

Description: DC DC CONVERTER 3.3V 1W

Catalog: DC DC Converters

DataSheet: CC1R5-0503SR-E PDF

Country of origin: Confirming

Date code: TBC

CC1R5-0503SR-E Specifications

Type	Description
Series:	CC-E (1.5W)
Package:	Tray
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	4.5V
Voltage - Input (Max):	9V
Voltage - Output 1:	3.3V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	400mA
Power (Watts):	1 W
Voltage - Isolation:	500 V
Applications:	ITE (Commercial)
Features:	-
Operating Temperature:	-40°C ~ 85°C
Efficiency:	-
Mounting Type:	Surface Mount
Package / Case:	7-SMD Module
Size / Dimension:	0.65" L x 0.65" W x 0.35" H (16.5mm x 16.6mm x 8.8mm)
Supplier Device Package:	-
Control Features:	Enable, Active Low
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
CC1R5-0505SR-E Match 52%	TDK-Lambda, Inc. DC DC CONVERTER 5V 1W	CC1R5-0503SR-E vs CC1R5-0505SR-E
CC6-0512SR-E Match 52%	TDK-Lambda, Inc. DC DC CONVERTER 12-15V 6W	CC1R5-0503SR-E vs CC6-0512SR-E
CC3-0503SR-E Match 50%	TDK-Lambda, Inc. DC DC CONVERTER 3.3V 3W	CC1R5-0503SR-E vs CC3-0503SR-E

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 5005

Shipped from

HK warehouse

Expected Shipping Date

Nov 13 - Nov 17 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$9.7000~~	~~$9.70~~
10	~~$9.2400~~	~~$92.40~~

Current price of CC1R5-0503SR-E is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
