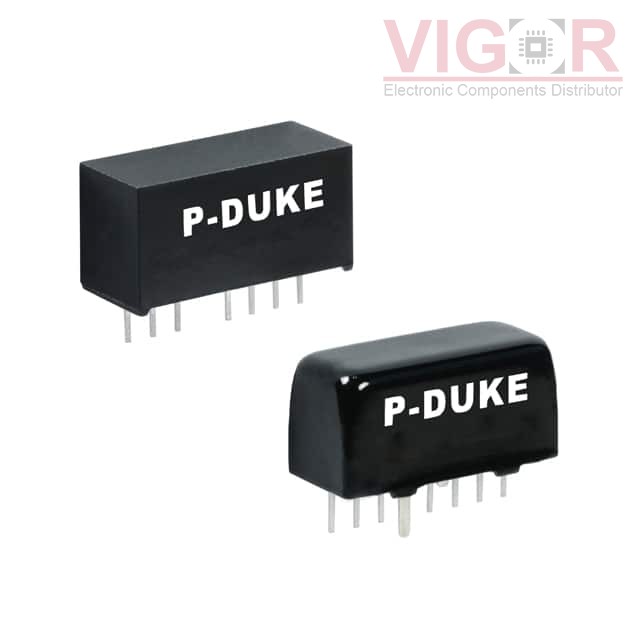

PDL09-24S12W

Part No :: PDL09-24S12W

Manufacturer: P-Duke Technology, Inc.

VIGOR # :: 4102567

Description: DC DC CONVERTER 12V 9W

Catalog: DC DC Converters

DataSheet: PDL09-24S12W PDF

Country of origin: -

Date code: -

PDL09-24S12W Specifications

Type	Description
Series:	PDL09 (9W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	18V
Voltage - Input (Max):	36V
Voltage - Output 1:	12V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	750mA
Power (Watts):	9 W
Voltage - Isolation:	1.6 kV
Applications:	ITE (Commercial)
Features:	Adjustable Output, Remote On/Off
Operating Temperature:	-40°C ~ 100°C (With Derating)
Efficiency:	89%
Mounting Type:	Through Hole
Package / Case:	8-SIP Module, 6 Leads
Size / Dimension:	0.86" L x 0.36" W x 0.44" H (21.8mm x 9.1mm x 11.2mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	CB, CE, cURus
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
9S8W4E_4815S1.6RP Match 71%	TE Connectivity AMP Connectors DC-DC	PDL09-24S12W vs 9S8W4E_4815S1.6RP
ITQ4812SA Match 70%	XP Power DC DC CONVERTER 12V 6W	PDL09-24S12W vs ITQ4812SA
ITQ2412SA Match 70%	XP Power DC DC CONVERTER 12V 6W	PDL09-24S12W vs ITQ2412SA
EC5SAW-24S12N Match 84%	Cincon DC DC CONVERTER 12V 10W	PDL09-24S12W vs EC5SAW-24S12N
9S8W4E_4812S1.6RP Match 100%	TE Connectivity AMP Connectors DC-DC	PDL09-24S12W vs 9S8W4E_4812S1.6RP
EC5SAW-48S12N Match 84%	Cincon DC DC CONVERTER 12V 10W	PDL09-24S12W vs EC5SAW-48S12N

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 1157

Shipped from

HK warehouse

Expected Shipping Date

Oct 27 - Oct 31 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$30.3000~~	~~$30.30~~

Current price of PDL09-24S12W is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
