P7805-Q24-S15-S

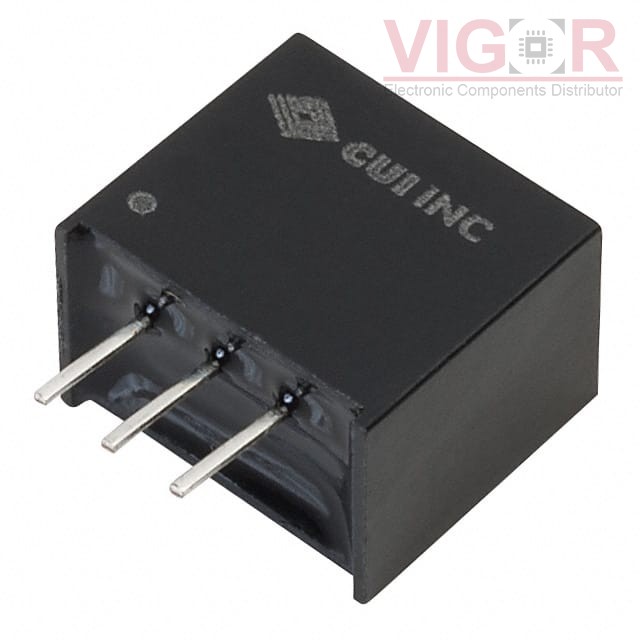

Product image
Product thumb
Part No :

P7805-Q24-S15-S

Manufacturer
CUI Inc.
VIGOR # :

4102705

Description
DC DC CONVERTER 15V 8W
Catalog
DC DC Converters
DataSheet
P7805-Q24-S15-S PDF
Country of origin
-
Date code
-
ads
P7805-Q24-S15-S Specifications
Type Description
Series:P7805-S
Package:Tube
Part Status:Active
Type:Linear Regulator Replacement
Number of Outputs:1
Voltage - Input (Min):18V
Voltage - Input (Max):32V
Voltage - Output 1:15V
Voltage - Output 2:-
Voltage - Output 3:-
Voltage - Output 4:-
Current - Output (Max):500mA
Power (Watts):8 W
Voltage - Isolation:-
Applications:ITE (Commercial)
Features:OTP, SCP
Operating Temperature:-40°C ~ 85°C
Efficiency:96%
Mounting Type:Through Hole
Package / Case:3-SIP Module
Size / Dimension:0.46" L x 0.30" W x 0.40" H (11.6mm x 7.5mm x 10.2mm)
Supplier Device Package:-
Control Features:-
Approval Agency:EN
Standard Number:55024; 55032 Class A
Alternative Products
Part Number Manufacturer & Description Compare
PM-500A150 Match 100%
Volgen (Kaga Electronics USA)
DC DC CONVERTER 15V
 P7805-Q24-S15-S vs PM-500A150
SR05S12 Match 67%
XP Power
DC DC CONVERTER 12V 6W
 P7805-Q24-S15-S vs SR05S12
PM05S120A Match 67%
Delta Electronics / Power
DC DC CONVERTER 12V 6W
 P7805-Q24-S15-S vs PM05S120A
PM-500A120 Match 69%
Volgen (Kaga Electronics USA)
DC DC CONVERTER 12V
 P7805-Q24-S15-S vs PM-500A120
TSR 0.5-24150 Match 98%
TRACO Power
DC DC CONVERTER 15V 7.5W
 P7805-Q24-S15-S vs TSR 0.5-24150
SR05S15 Match 100%
XP Power
DC DC CONVERTER 15V 8W
 P7805-Q24-S15-S vs SR05S15
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 82
Shipped from
HK warehouse
Expected Shipping Date
Aug 26 - Aug 30 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $4.9400 $4.94
5 $4.8640 $24.32
20 $4.7940 $95.88
40 $4.6530 $186.12
60 $4.5120 $270.72
100 $4.3710 $437.10
260 $4.2300 $1 099.80
500 $3.9480 $1 974.00

Current price of P7805-Q24-S15-S is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
