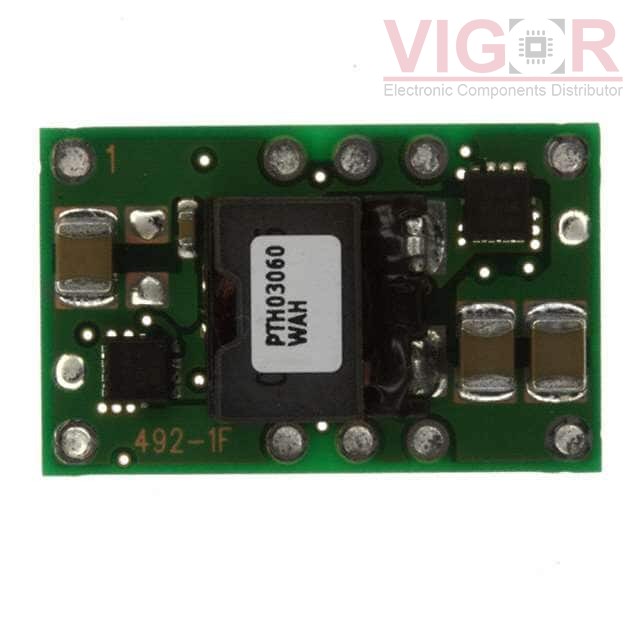

PTH03060YAH

Part No :: PTH03060YAH

Manufacturer: Texas Instruments

VIGOR # :: 4102845

Description: DC DC CONVERTER 0.55-1.8V

Catalog: DC DC Converters

DataSheet: PTH03060YAH PDF

Country of origin: -

Date code: -

PTH03060YAH Specifications

Type	Description
Series:	PTH03060Y
Package:	Tray
Part Status:	Active
Type:	Non-Isolated PoL Module
Number of Outputs:	1
Voltage - Input (Min):	2.95V
Voltage - Input (Max):	3.65V
Voltage - Output 1:	0.55 ~ 1.8V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	10A
Power (Watts):	-
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	-
Operating Temperature:	-40°C ~ 85°C
Efficiency:	86%
Mounting Type:	Through Hole
Package / Case:	10-DIP Module
Size / Dimension:	1.00" L x 0.62" W x 0.35" H (25.4mm x 15.7mm x 8.9mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
PTH03060WAH Match 100%	VIGOR PTH03060W 10 A, 3.3-V INPUT NON-	PTH03060YAH vs PTH03060WAH
PTH03060WAD Match 100%	VIGOR PTH03060W 10 A, 3.3-V INPUT NON-	PTH03060YAH vs PTH03060WAD
PMF4218TP Match 100%	Flex Power Modules DC DC CONVERTER 0.8-2.5V 25W	PTH03060YAH vs PMF4218TP
MPDTH03060YAH Match 100%	Murata Power Solutions DC DC CONVERTER 0.55-1.8V 18W	PTH03060YAH vs MPDTH03060YAH
MPDTH03060WAH Match 100%	Murata Power Solutions DC DC CONVERTER 0.8-2.5V 25W	PTH03060YAH vs MPDTH03060WAH

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 324

Shipped from

HK warehouse

Expected Shipping Date

Aug 29 - Sep 02 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$15.5311~~	~~$15.53~~
36	~~$15.5311~~	~~$559.12~~

Current price of PTH03060YAH is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
